Enclosed & Energy-Saving
Fully sealed to keep dust in and contaminants out, while using less power.
VACUUM CONVEYOR
Vacuum Conveying System — Dust-Free Pneumatic Powder Transfer
$2,500–$20,000FOB Factory Price
- VC-50 to VC-8000 · 50–8,000 kg/h
- Fully enclosed pipeline · Dust-free
- 5–50m horizontal · ATEX option
- CE + ISO 9001 · Pre-shipment video test
OVERVIEW
Pneumatic Vacuum Conveying Technology
The vacuum conveyor uses a vacuum pump (venturi or mechanical) to create negative pressure that draws powder and granules through an enclosed pipeline from a pickup point to a receiving hopper. The material is separated from the air stream by a filter, and discharged through a valve. This fully enclosed system provides 100% dust-free transfer — critical for pharmaceutical, food, chemical (hazardous), and battery (sensitive) applications. Vacuum conveyors are compact, easy to route around obstacles, and can serve multiple pickup/discharge points. Compared to mechanical screw conveyors, pneumatic systems offer greater installation flexibility and superior containment.
TECHNICAL SPECIFICATIONS
Vacuum Conveyor — VC Series
| Parameter | VC-50 | VC-200 | VC-500 | VC-1000 | VC-3000 | VC-8000 |
|---|---|---|---|---|---|---|
| Capacity (kg/h) | 50-100 | 200-400 | 500-800 | 1000-1500 | 3000-4000 | 6000-8000 |
| Distance (m) | 5-20 | 10-30 | 10-40 | 10-50 | 15-50 | 20-50 |
| Pump (kW) | 1.5 | 3 | 5.5 | 7.5 | 11 | 18.5 |
| Hopper Vol (L) | 5 | 15 | 30 | 50 | 80 | 120 |
Ready to Order?
$2,500–$20,000FOB Zhengzhou
- Pre-shipment video test
- Installation manual
- 12-month warranty
TRANSPORT MODES
Dilute Phase vs. Dense Phase
Dilute Phase (Standard)
High velocity (15-25 m/s), low pressure. Material suspended in air stream. Best for: free-flowing powders, granules, non-friable materials. Most common and economical.
Dense Phase (Special)
Low velocity (3-8 m/s), higher pressure. Material moves in slugs/plugs. Best for: fragile, abrasive, or blended materials. Less pipe wear, gentler handling. Higher initial cost.
KEY FEATURES
Why Choose Vacuum Conveying
100% Dust-Free
Fully enclosed pipeline. No dust emission. Meets occupational health standards.
Flexible Routing
Pipes route around obstacles, between floors. Much more flexible than mechanical.
Automatic Loading
Automatically loads receiving hoppers. Can serve multiple destinations.
Compact Footprint
Small floor space. The pump and filter unit mounts on the receiving vessel.
OPTIONS
Customization & Options
ATEX / Explosion-Proof
Certified for combustible dusts. Conductive piping, grounding, and venting.
Filter Material Selection
PTFE membrane, polyester, Nomex. Selected for your material and temperature.
Multi-Point System
Serve multiple pickup and discharge locations from a single pump unit.
PLC Integration
Full integration with upstream/downstream equipment. Centralized control.
6 Reasons to Choose Saturn Machinery
Ready to Get Your Vacuum Conveyor Price?
Free quote in 24 hours · Video test before payment · No obligation
Get a Free Quote →SYSTEM INTEGRATION
Enclosed Transfer Between Critical Process Steps
A vacuum conveyor can link mixers, hoppers and packing machines while reducing open handling. Confirm the material, distance, elevation, route and cleaning requirement before selecting a conveying configuration.
Frequently Asked Questions
Get a Quote for Your Vacuum Conveyor
- ✅ Custom quote in 24 hours
📋 Request Quote

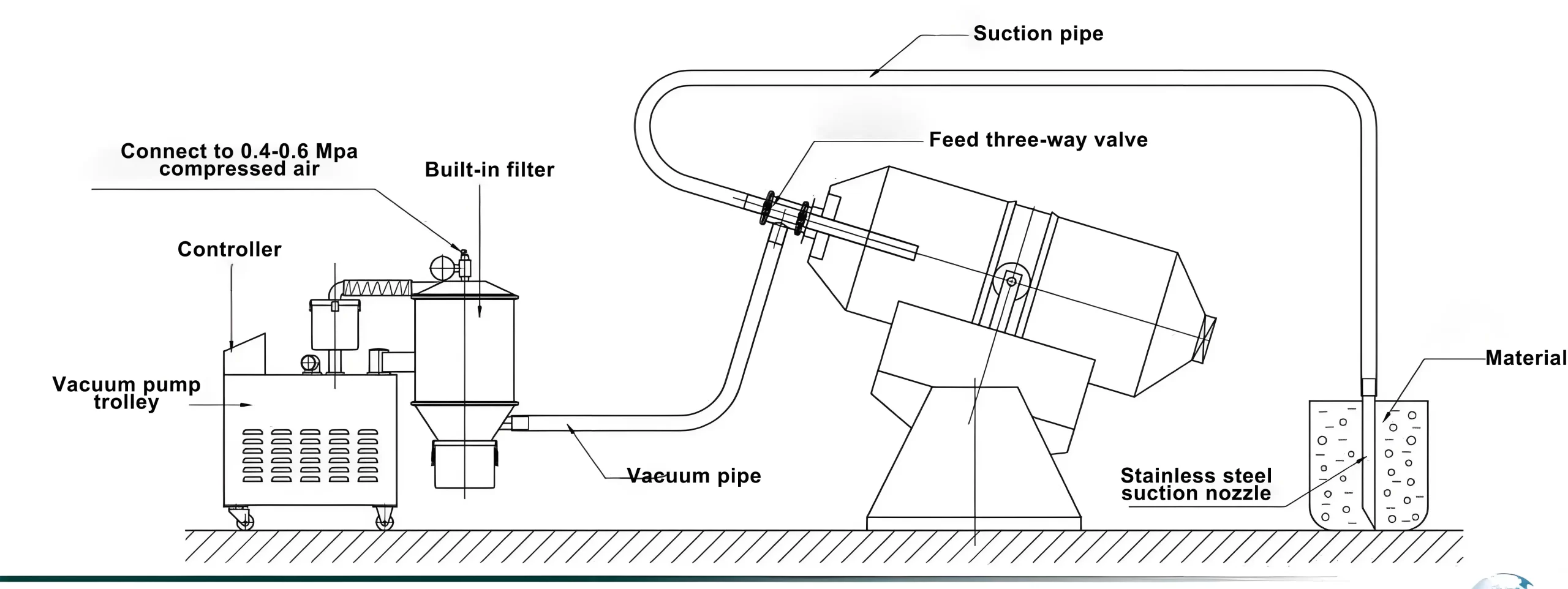

How the Vacuum Conveyor Works
A vacuum pump creates negative pressure that pulls powder through sealed pipelines into a collection hopper. A pulse-jet filter prevents dust escape, and the discharge valve releases material into the destination.
Vacuum created > Powder suctioned through pipe > Filter separates air > Hopper collects > Valve discharges material
SOURCE EQUIPMENT DETAILS
Vacuum Conveying Process & Components
Source documentation adds a receiving-system workflow illustration and component views to complement the vacuum conveying sequence retained on this page.
Product engineering details
Vacuum Conveyor Engineering Details
Explore sealed pneumatic conveying, filtration, throughput range and installation options for dust-free powder and granule transfer.
Introduction
vacuum conveyor represents an advanced pneumatic conveying solution for modern powder and granule handling. Utilizing negative pressure technology, it transports dry bulk materials cleanly and efficiently through sealed pipelines directly to processing equipment—such as mixers, hoppers, or packaging machines.
By fully automating the charging process, it significantly reduces manual labor while eliminating dust exposure and cross-contamination risks. Engineered with a high-efficiency filtration and separation system, it ensures only product reaches its destination.
This makes it the preferred choice for pharmaceutical, food, and chemical industries where hygiene, safety, and process integrity are paramount.
Specifications
| Model | Capacity (T/h) | Power (Kw) | Air Consumption (L/min) |
|---|---|---|---|
| S-V1 | 0.4 | 1.5 | 10 |
| S-V2 | 0.6 | 2.2 | 20 |
| S-V3 | 1.2 | 3 | 50 |
| S-V4 | 2 | 4 | 100 |
| S-V5 | 3 | 4 | 150 |
| S-V6 | 4 | 5.5 | 200 |
| S-V7 | 6 | 7.5 | 300 |
Details
Versatile Throughput & Gentle Handling
Suitable for powders, granules, and blends with a capacity range of 50–2000 kg/h.
Protects Material & Reduces Static
Moves powders and granules gently without damage, and minimizes static buildup
Made for Clean Industries
Built with food/pharma-grade stainless steel to meet strict hygiene standards.
