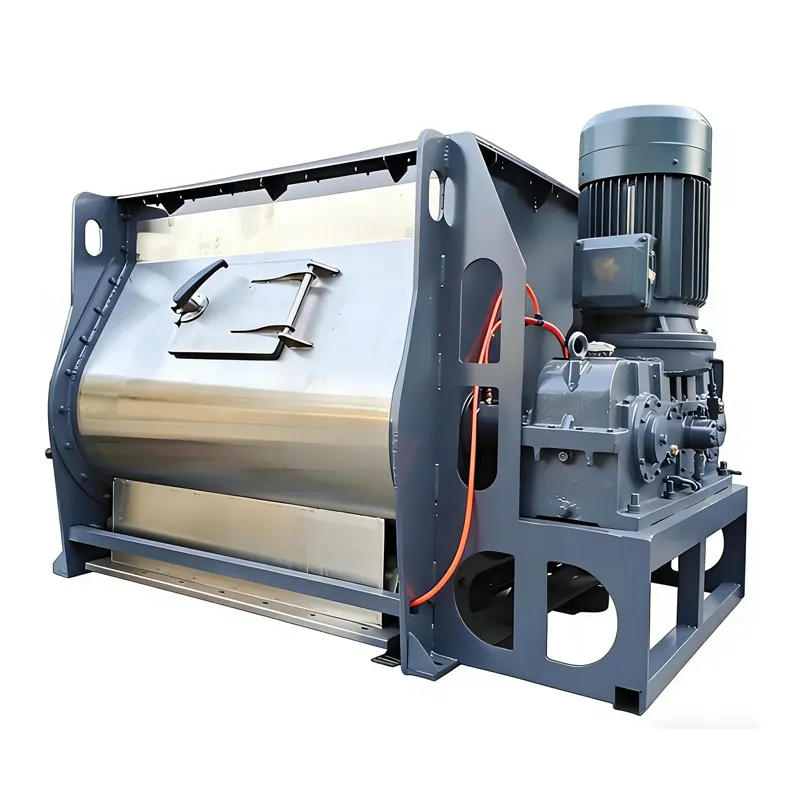

Industrial double paddle mixer
Twin-Shaft Mixing for Viscous Materials
DPM double paddle mixers combine counter-rotating shafts and a W-shaped trough for intensive mixing of pastes, doughs, slurries and wet materials.
- 100L to 10,000L DPM models
- Twin counter-rotating paddles
- SS304 or SS316L construction
- Jacket, vacuum and VFD options
4,000 m²Zhengzhou factory
CE + ISO 9001Quality system
500+Machines delivered
40+ countriesGlobal projects
13 yearsSince 2013
12 monthsStandard warranty
Mixing principle
Overlapping Paddle Action in a W-Shaped Trough
Two counter-rotating shafts use overlapping paddle blades to divide, fold and recombine material. The design is intended for demanding, high-viscosity materials where complete discharge and intensive working action matter.
100–10k LDPM total volume range
3–110 kWListed motor power range
10–80 RPMListed speed range
2 shaftsCounter-rotating paddles
Twin shafts engage
Counter-rotating paddles divide material throughout the trough.
Overlap zone
The paddle overlap zone folds and recombines viscous material.
Liquid dosing
Spray-bar systems can introduce liquid or binder during mixing.
Dual discharge
Bottom discharge paths support complete emptying of sticky batches.
Technical specifications
DPM Series Selection Data
Use these existing DPM values as a selection starting point. Confirm final motor selection and configuration after process review.
| Model | DPM-100 | DPM-300 | DPM-500 | DPM-1000 | DPM-2000 | DPM-5000 | DPM-10000 |
|---|---|---|---|---|---|---|---|
| Total volume | 100L | 300L | 500L | 1,000L | 2,000L | 5,000L | 10,000L |
| Motor power | 3–5.5kW | 7.5–11kW | 11–15kW | 18.5–22kW | 30–37kW | 55–75kW | 90–110kW |
| Speed | 20–80 RPM | 20–70 RPM | 20–60 RPM | 20–50 RPM | 15–45 RPM | 12–40 RPM | 10–35 RPM |
Also available: DPM-200, DPM-800, DPM-1500 and DPM-3000. Discuss SS316L, jacket, VFD, vacuum operation and tilting discharge requirements with our team.
Design features & options
Built for Dense and Viscous Mixes
Overlapping Paddle Zone
Twin shafts create an intensive overlap zone to reduce dead spots.
W-Shaped Trough
Dual-bottom geometry directs material toward discharge points.
High-Torque Drive
Heavy-duty gear drive is designed for high-viscosity material resistance.
Liquid Addition
Spray bar configuration supports controlled binder or liquid addition.
Heating / Cooling Jacket
Temperature-control option for heat-sensitive or reactive materials.
Vacuum & Tilting Options
Vacuum deaeration and hydraulic tilting can be specified for paste processing.
Applications
For Pastes, Doughs and Wet Process Materials
Doughs & Fillings
Doughs, pastes, fillings, gum blends and concentrated syrups with solids.
Sealants & Adhesives
Sealants, adhesives, putties, caulks and silicone compounds.
Paste Formulations
Creams, lotions, wax-based products and other paste formulations.
Thick Mortar
Wall putty, joint compound, epoxy grout and thick mortar materials.
Binder Mixing
Wet material masses requiring controlled liquid distribution.
Viscous Blends
Formulations needing temperature control or deaeration options.
Special Processes
Tell us your viscosity and discharge constraints for selection support.
Configured System
Discuss loading, dosing, control and downstream connection requirements.
Why Saturn Machinery
Practical Support for Process-Critical Equipment
Video Test Before Shipment
Review the confirmed equipment operating before final payment and shipment.
Factory-Direct Engineering
Discuss materials, options and line integration directly with the manufacturer.
Documentation & Support
English manuals, available documentation and ongoing technical contact.
Frequently asked questions
Double Paddle Mixer Questions
What makes a double paddle mixer different from a ribbon mixer?
The twin counter-rotating paddle design creates an intensive overlap zone and is described for pastes, doughs, slurries and high-viscosity materials. Ribbon mixers are commonly selected for free-flowing dry powders.
Can it handle wet or paste materials?
Yes. The existing DPM application range includes pastes, doughs, slurries and wet granulation masses, with liquid addition available via spray bar.
What model range is available?
The listed DPM series ranges from 100L to 10,000L, with DPM-200, 800, 1500 and 3000 also available.
Can vacuum operation be added?
Vacuum operation is an available option for deaeration during mixing when air entrapment is a process concern.
Are heating and cooling available?
Heating or cooling jacket configurations are available for temperature-sensitive or reactive materials.
How should I size the mixer?
Send your batch volume, viscosity, bulk density, liquid addition, temperature and discharge requirements for a suitable configuration.
Product engineering details
Double Paddle Mixer Engineering Details
Compare the twin-shaft paddle structure, working volume, discharge design and process options for dense powders, moist materials and paste-like batches.
Introduction
Double shafts paddle mixer is high-performance mixer for powder, granules, liquid additives, short fibres, etc. like for mixing moistening, agglomerating, and granulating material, which is widely used in food, feed, chemical, dry mortar industries etc.
With the most powerful motor and double shaft paddle structure, material can be mixed evenly in the shortest time. It is particularly good at mixing material with big difference in gravity, mesh size, fluidity. Four or two hatches on the side of the machine (depending on the size of the mixer) ensure easy and hygienic cleaning of the system.
where requried, spray lines, side clean doors, high-speed choppers, heat or cold jacket，different functional coating can be installed to achieve the desired mixing effect.
- Batch working volume
- 0.1-15cbm
- Material
- 304/316L Stainless Steel, Carbon Steel
- Batch weight
- 0.3-15tons
Features
- Excellent mixing homogeneity in short time
- Top high speed lump breaker device for de-agglomeration requirement
- Abrasion resistant and heavy duty design for processing abrasive material
- Batch or continuous process
- Big size discharge valve to minimize residues
Applications
- Pharmaceuticals & Nutraceuticalsc: Active Pharmaceutical Ingredients, excipients, vitamin premixes, probiotic blends, and fine powder formulations
- Food & Dairy: Milk powders, infant formula, protein blends, premium coffee/tea powders, spice mixes, and nutritional fortificants
- Chemicals: Pigments, dyes, ceramic powders, metal powders, catalysts, and high-performance polymer blends
- New Energy & Battery Materials: Cathode/Anode powders, conductive additives, solid-state electrolytes, and coating powders
Specifications
| Specifications | ||||
|---|---|---|---|---|
| Gross Volume (L) | Effective Volume (L) | Overall Dimensions (mm) | Shaft Speed (rpm) | Approx. Weight (kg) |
| 200 | 80-120 | 1200*1200*750 | 43 | 270 |
| 300 | 120-180 | 1300*1400*930 | 43 | 450 |
| 500 | 200-300 | 1500*1600*1050 | 43 | 900 |
| 1000 | 400-600 | 1900*1600*1200 | 43 | 1190 |
| 1500 | 600-900 | 2200*1700*1325 | 43 | 1600 |
| 2000 | 800-1200 | 2400*1700*1600 | 43 | 2700 |
| 3000 | 1200-1800 | 2500*1850*1760 | 43 | 3200 |
| 4000 | 1600-2400 | 2900*2200*1850 | 29 | 4500 |
Details

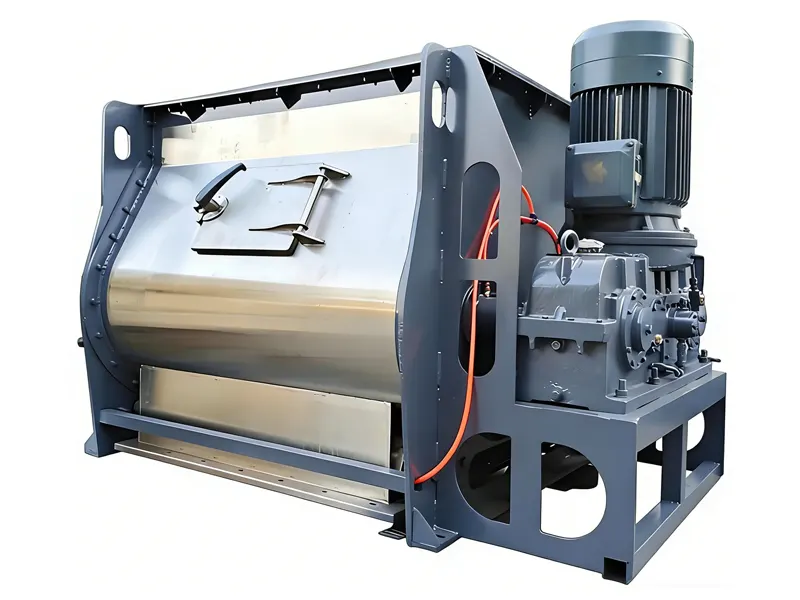

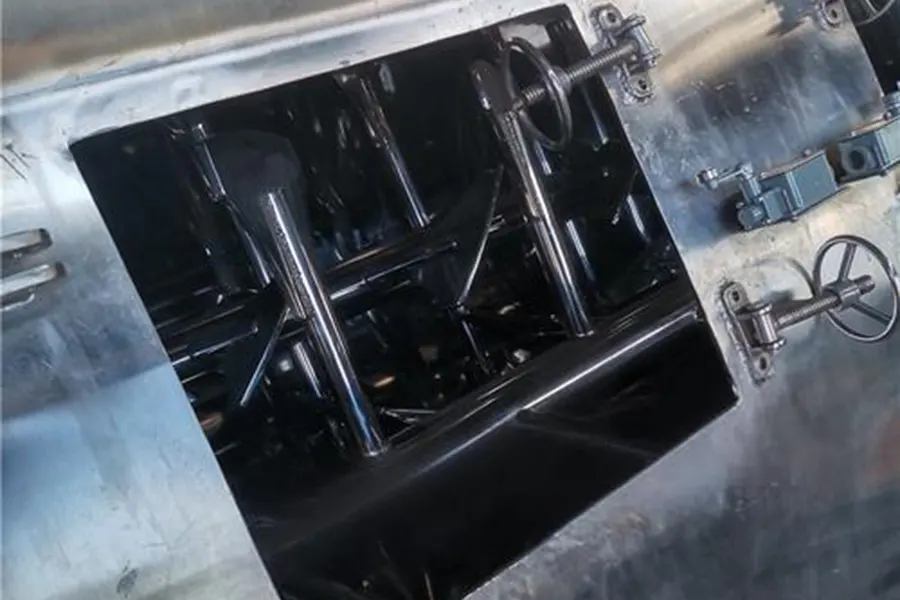

Mixing Unit
paddle mixer is a high-precision blending machine that can achieve excellent mixing results even when the materials have significant differences in density, particle size, and proportions. This is due to the rapid and intense tumbling and scattering of the materials by the interlaced paddle blades.

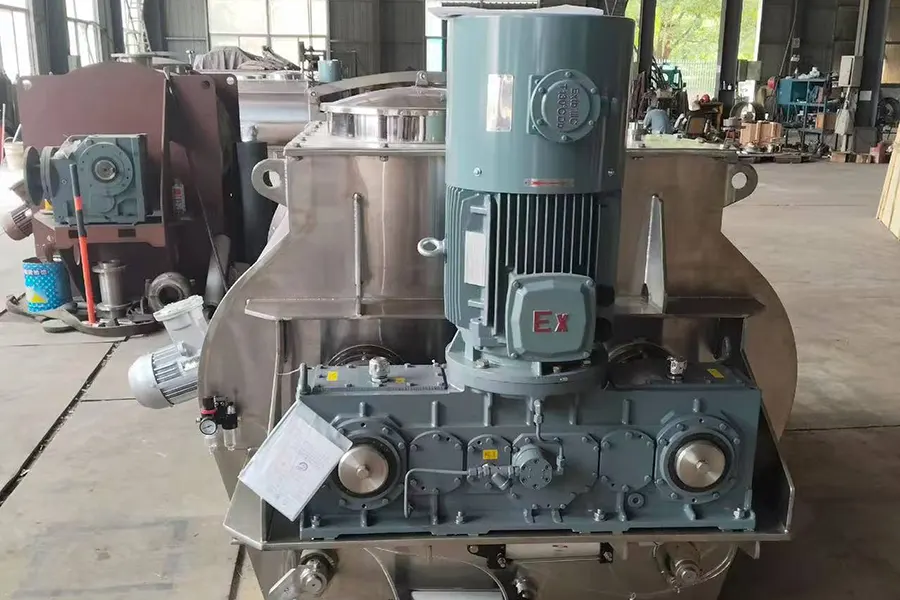

Gearbox
For large-scale mixers with a capacity of over 6 cubic meters, an inline gearbox is used to increase torque and reduce maintenance rates, effectively addressing some of the previous drawbacks.

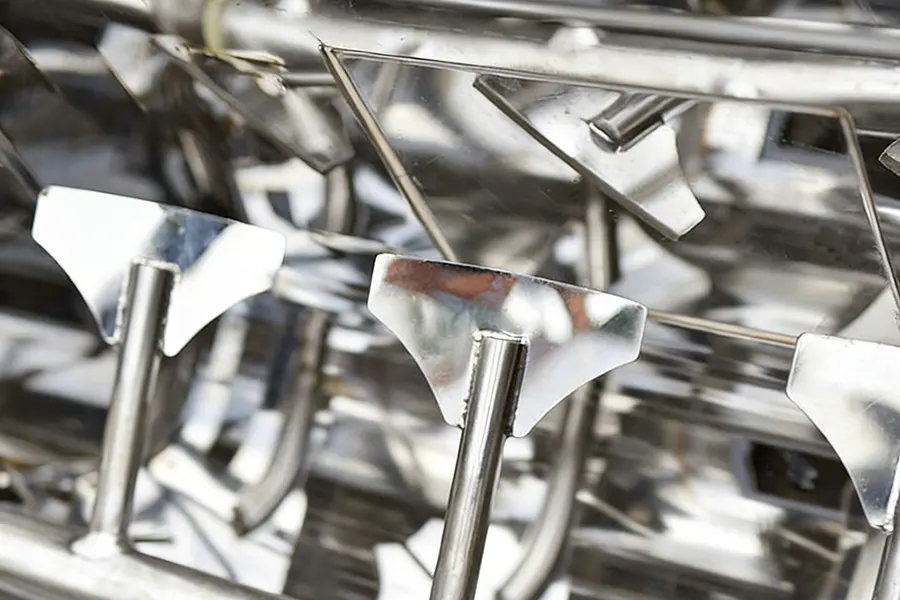

Two-piece blades
To reduce the cost of replacing vulnerable parts, the paddle blades can be made in a two-piece design. A movable small blade is placed on the blade base, allowing for direct replacement of worn-out small blades. This approach is economical and efficient.

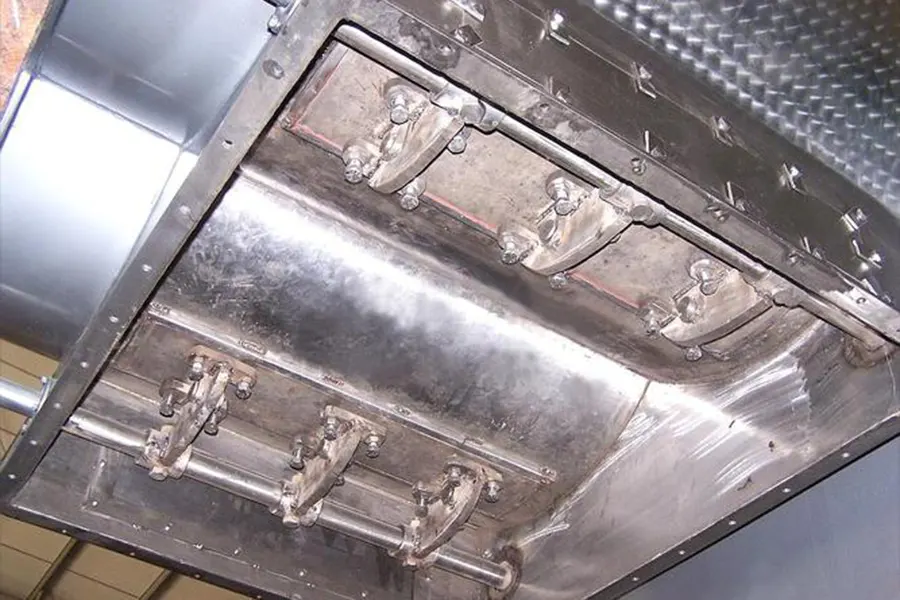

Discharge valve
Standard valve for double shaft paddle mixer is twin pneumatic planar flap valves. When close the valve, the planar flaps match the mixing barrel perfectly, this makes no mixing dead zone and better mixing effect.
