ROTARY DRUM MIXER
$1,800–$12,000FOB Factory Price
OVERVIEW

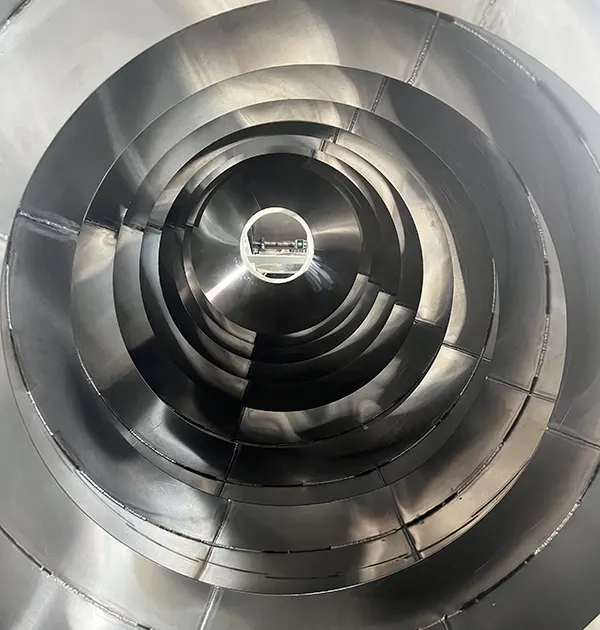

The rotary drum mixer uses a slow-rotating cylindrical drum to tumble materials gently. Unlike aggressive mechanical mixers, there are no internal blades or paddles exerting shear force on the product. Material is lifted by the rotation and falls under gravity, creating a gentle folding action. Internal baffles can be added to enhance mixing without introducing shear. This makes the rotary drum mixer ideal for fragile, friable materials such as tea leaves, herbs, spices, coffee beans, nuts, dried fruits, and breakfast cereals. The full stainless steel drum ensures hygiene and easy cleaning.
TECHNICAL SPECIFICATIONS
| Parameter | RDM-100 | RDM-300 | RDM-500 | RDM-1000 | RDM-2000 | RDM-5000 |
|---|---|---|---|---|---|---|
| Total Volume (L) | 100 | 300 | 500 | 1000 | 2000 | 5000 |
| Motor Power (kW) | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 15 |
| Speed (RPM) | 5-25 | 5-20 | 5-18 | 5-15 | 4-12 | 3-10 |
* Also: RDM-200, RDM-800, RDM-1500, RDM-3000. SS316L (+20%). Dimple jacket (+15%).
IDEAL FOR
Black, green, oolong, herbal tea leaf blending. No breakage, preserves leaf structure.
Dried herbs, whole spices, bay leaves, oregano, rosemary — gentle mixing.
Whole bean blending for roast profiles. No crushing or chipping.
Mixed nuts, trail mix, granola, muesli — maintains piece integrity.
Flake blending without crushing. Multi-grain mixes, muesli.
Cosmetic-grade salt and crystal blending. SS316L for purity.
OPTIONS
Heating or cooling jacket for temperature-sensitive materials.
For oxygen-sensitive products. Inert gas purging available.
Hydraulic tilt for easy, complete emptying of the drum.
Clean-in-place spray balls integrated into drum design.
WHY SATURN
See your mixer running before payment.
Standard models ready in 15 days.
8,000 m² plant. Direct pricing.
Free quote in 24 hours · Video test before payment · No obligation
Get a Free Quote →SOURCE EQUIPMENT DETAILS

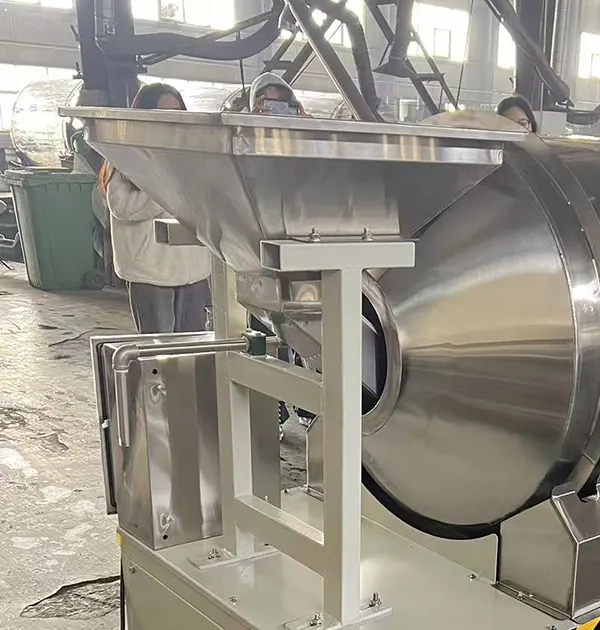

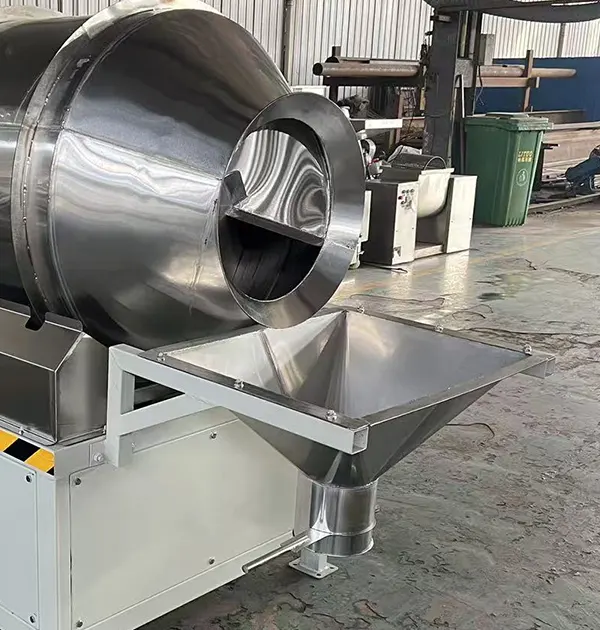

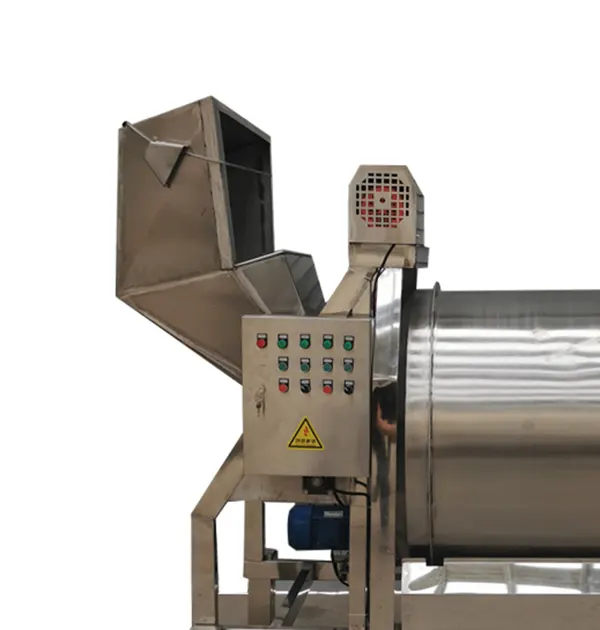

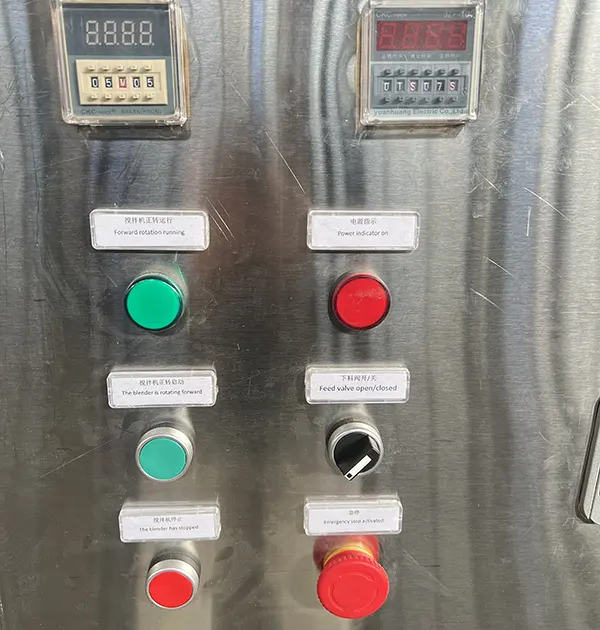

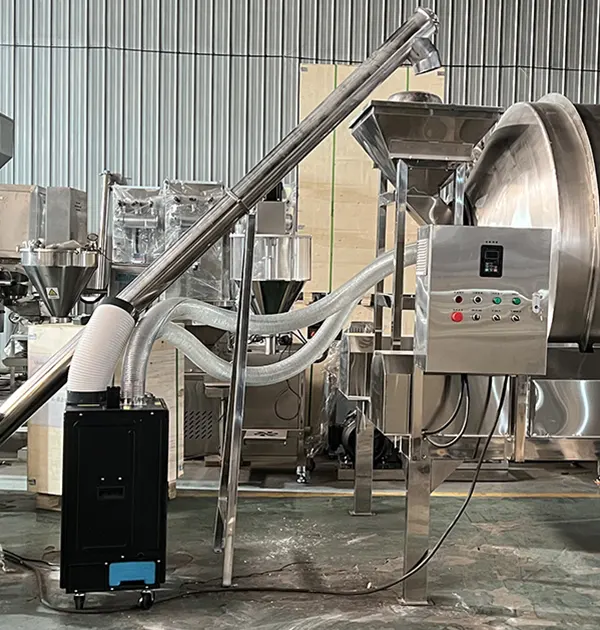

The source documentation supplements the existing working-principle section with drum views and the associated feed, vacuum loading, control and discharge components.
Product engineering details
Review drum mixing motion, stainless-steel construction, capacity data and optional feed or discharge arrangements for gentle tumbling applications.
The stainless steel drum mixer ensures gentle, thorough blending through a rotating tumbling action, preserving material integrity while achieving batch-to-batch consistency.
It handles a wide range of materials—from fine powders to granules—and is designed for easy cleaning.
Optional heating or cooling jackets are available for temperature-controlled processes.
| Specifications | |||||
|---|---|---|---|---|---|
| Model | Capacity (L) | Design Volume (L) | Power (kw) | Overall Dimensions (mm) | Weight （kg） |
| 800 | 100 | 380 | 3 | 1850*980*1395 | 280 |
| 950 | 200 | 600 | 3 | 2200*1022*1570 | 334 |
| 1080 | 300 | 900 | 3 | 2265*1250*1460 | 400 |
| 1300 | 500 | 1500 | 3*2 | 2860*1460*1850 | 500 |
| 1500 | 900 | 2700 | 4*2 | 3150*1680*1860 | 600 |
| 1600 | 1000 | 3000 | 4*2 | 3376*1800*2045 | 700 |
| 1800 | 1700 | 5100 | 11 | 4350*2100*2100 | 800 |
| 1900 | 2800 | 8500 | 7.5*2 | 5200*2060*2400 | 900 |
| 2500 | 5000 | 15000 | 7.5*2 | 5749*2820*3180 | 1200 |
