Charge material
Feed powders, granules or process ingredients into the trough.
Home / Products / Plough Shear Mixer

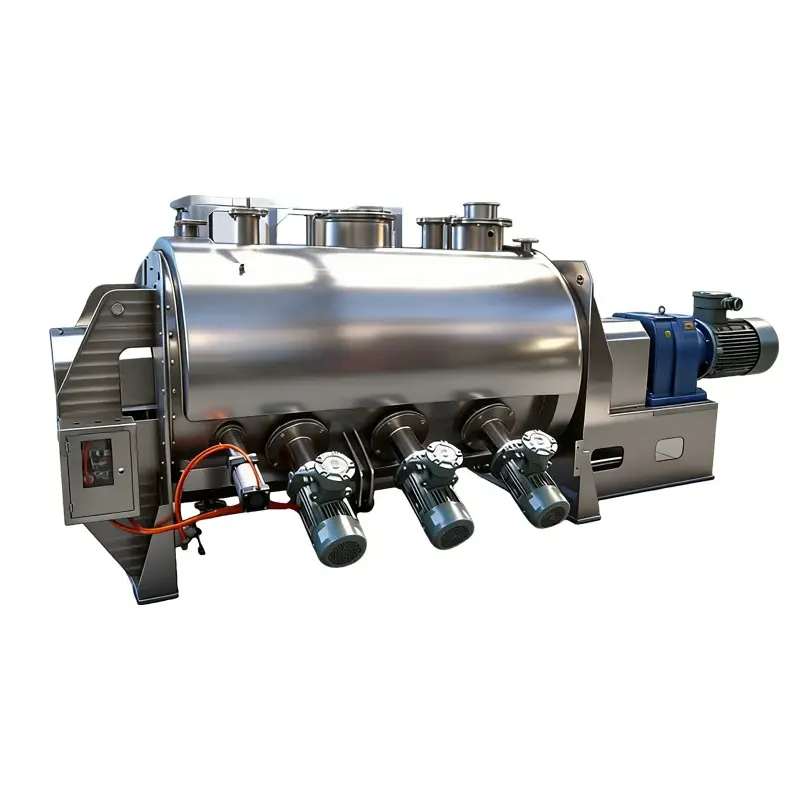

Industrial plough shear mixer
Intensive Mixing for Cohesive Powders
LDH plough shear mixers create a fluidized mixing zone for powders, granules, wet granulation and liquid-addition processes.
- 300L to 15,000L LDH models
- Plough blades with optional choppers
- SS304 or SS316L contact parts
- Liquid injection and automation options
4,000 m²Zhengzhou factory
CE + ISO 9001Quality system
500+Machines delivered
40+ countriesGlobal projects
13 yearsSince 2013
12 monthsStandard warranty
Mixing principle
Fluidized, High-Intensity Batch Mixing
Rotating plough-shaped blades throw material into the free mixing space above the trough. Optional high-speed choppers break agglomerates and help disperse liquids, making this platform suitable for cohesive or fatty powders that need more energy than a ribbon mixer.
300–15k LLDH total volume range
5.5–90 kWMain motor range
50–130 RPMListed mixing speed range
SS304 / 316LContact material options
Plough action
Plough blades lift and project material through the mixing zone.
Optional choppers
High-speed choppers can break lumps and disperse liquid additions.
Intensive circulation
Particles collide, fold and redistribute in the fluidized bed.
Bottom outlet
Pneumatic discharge can be configured for fast batch emptying.
Technical specifications
LDH Series Selection Data
These existing model specifications are a selection reference. Confirm final configuration from your material, batch size, electrical supply and required options.
| Model | LDH-0.3 | LDH-0.5 | LDH-1 | LDH-2 | LDH-4 | LDH-6 | LDH-10 | LDH-15 |
|---|---|---|---|---|---|---|---|---|
| Total volume | 300L | 500L | 1,000L | 2,000L | 4,000L | 6,000L | 10,000L | 15,000L |
| Working capacity | 0.18m³ | 0.30m³ | 0.60m³ | 1.20m³ | 2.40m³ | 3.60m³ | 6.00m³ | 9.00m³ |
| Motor power | 5.5kW | 7.5kW | 15kW | 22kW | 37kW | 45kW | 75kW | 90kW |
| Speed | 130 RPM | 120 RPM | 110 RPM | 100 RPM | 85 RPM | 75 RPM | 60 RPM | 50 RPM |
| Weight | 600kg | 1,000kg | 1,800kg | 2,800kg | 4,500kg | 6,200kg | 9,500kg | 13,500kg |
Also available: LDH-0.1, LDH-1.5, LDH-3, LDH-8 and LDH-12. Discuss SS316L, explosion-proof, VFD, heating/cooling jacket and other process requirements with our team.
Design features & options
Configured for Intensive Mixing Work
Plough-Shaped Blades
Create the fluidized mixing zone that lifts material through the vessel.
High-Speed Choppers
Optional side-mounted choppers help deagglomerate powders and disperse additions.
Liquid Injection
Spray-nozzle arrangements can add liquid during the mixing cycle.
Temperature Control
Heating or cooling jacket options are available for process control.
ATEX / Explosion-Proof
Applicable motors, controls and grounding can be discussed for combustible dust use.
PLC Automation
PLC control, recipe management, data logging and HMI are available configurations.
Applications
For Powders That Need More Mixing Energy
Pigments & Detergents
Powder coatings, pigments, detergents and catalysts requiring deagglomeration.
Fortified Blends
Soup powders, starch blends and food premixes with fat content.
Wet Granulation
API and excipient blending where liquid addition or intensive dispersion is needed.
Dry Mortar
Tile adhesive, plaster and high-output construction material batches.
Material Blending
LFP/NMC precursor mixing and cathode material blending with additives.
Powder Dispersion
Pigment dispersion, talc blends and pressed-powder formulations.
Binder Addition
Processes needing controlled liquid addition during mixing.
Your Material
Send material details for an application-focused recommendation.
Why Saturn Machinery
Practical Support for a Process-Critical Purchase
Video Test Before Shipment
Review the confirmed equipment operating before final payment and shipment.
Factory-Direct Engineering
Discuss materials, options and line integration directly with the manufacturer.
Documentation & Support
English manuals, available compliance documentation and ongoing technical contact.
Frequently asked questions
Plough Shear Mixer Questions
When should I choose a plough shear mixer?
It is suited to cohesive powders, wet granulation, liquid addition and processes requiring deagglomeration. Free-flowing dry powders may be better suited to a ribbon mixer.
Can choppers be added?
Yes. Optional high-speed side choppers break agglomerates and support liquid dispersion during mixing.
What models are available?
The listed LDH series runs from LDH-0.3 to LDH-15, with additional LDH-0.1, 1.5, 3, 8 and 12 models available.
Can the mixer be temperature controlled?
Heating or cooling jacket options can be discussed for temperature-sensitive or reactive material processes.
What material grades are available?
SS304 and SS316L contact-part configurations are available according to the application requirement.
How do I select a model?
Share batch weight, bulk density, material behavior, required output, liquid addition and electrical requirements for a technical recommendation.
Product engineering details
Plough Shear Mixer Engineering Details
Explore the plough tooling, chopper options, liquid addition features and selection data for high-intensity mixing of cohesive powders and wet granulation batches.
Introduction
The plow separates and lifts the product into three-dimensional motion, while the number and arrangement of the tools insure agitation back and forth along the length of the vessel.
When the material flows past the high-speed choppers, it is cut and scattered by the blades, achieving uniform mixing in short time. The choppers help to remove lumps in the raw material, chop pasty additives, and prevent formation of agglomerates on liquid addition.
- Batch working volume
- 0.1-20cbm
- Batch weight
- 0.3-15tons
- Material
- 304/316L Stainless Steel, Carbon Steel
Features
- Chemical: chemical powders, dye powders
- Batch weight: 0.3-15tons
- Manufactured material: 316L, 304, mild steel
- Adjustable, replaceable mixing tools
- Liquid adding, temperature requirement, chamber lining&coated plough tools
- High mixing homogeneity
- Low power consumption
Applications
- Chemical: chemical powders, dye powders
- Battery: battery material
- Cosmetic: cosmetics powder mixing
- Pharmaceutical: chemical powders
Specifications
| Specifications | ||||
|---|---|---|---|---|
| Gross Volume (L) | Effective Volume(L) | Overall Dimensions (mm) | Shaft Speed (rpm) | Approx. Weight (kg) |
| 100 | 40-60 | 1400*950*1100 | 200 | 400 |
| 300 | 120-180 | 1900*1100*1300 | 162 | 700 |
| 500 | 200-300 | 2000*1250*1500 | 145 | 865 |
| 1000 | 400-600 | 3200*1500*1900 | 134 | 2000 |
| 1500 | 600-900 | 3600*1600*1950 | 126 | 2300 |
| 2000 | 800-1200 | 3800*1700*2050 | 121 | 3100 |
| 3000 | 1200-1800 | 4200*1900*2300 | 106 | 3800 |
| 4000 | 1600-2400 | 4500*2100*2400 | 94 | 4800 |
Details

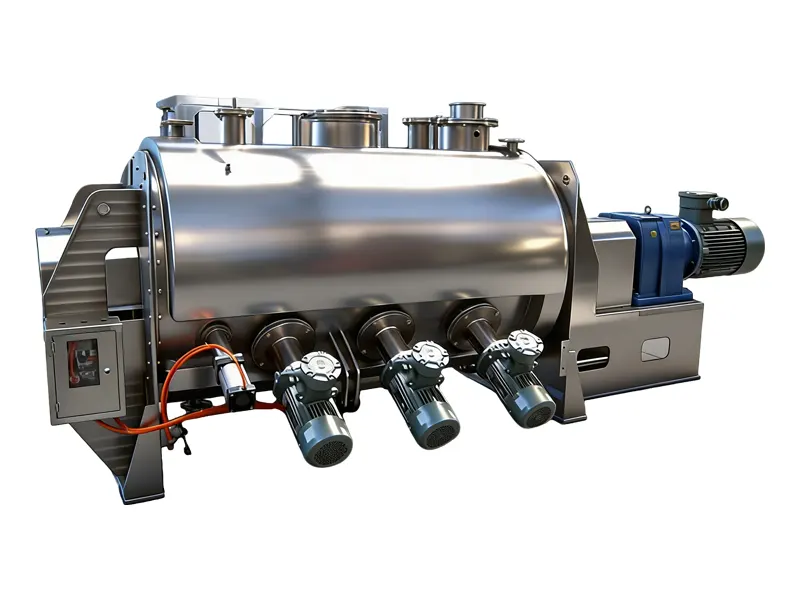

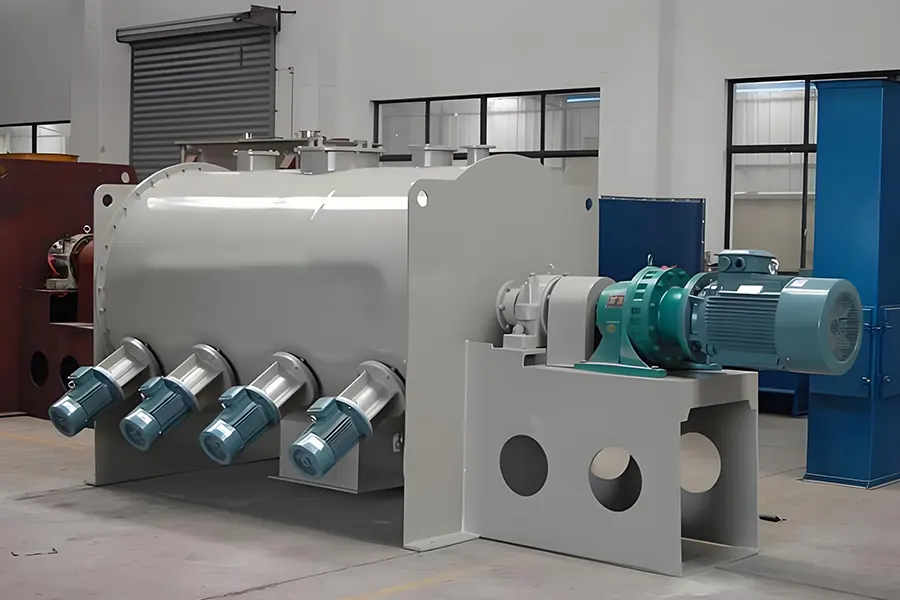

Drive unit
Standard mixers are driven directly by a gearbox, which provides high torque, reliability, and low noise. Large-scale mixing equipment, on the other hand, utilizes a combination of a gearbox and belt drive to protect the transmission components in case of unexpected situations.

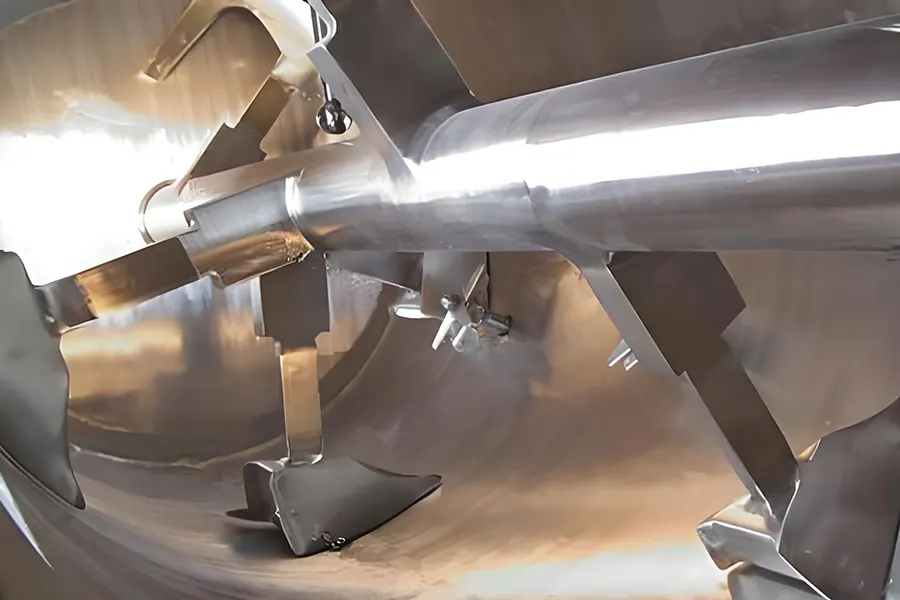

Mixing unit
The unique curved blade profile effectively lifts and disperses materials while generating powerful shearing force.

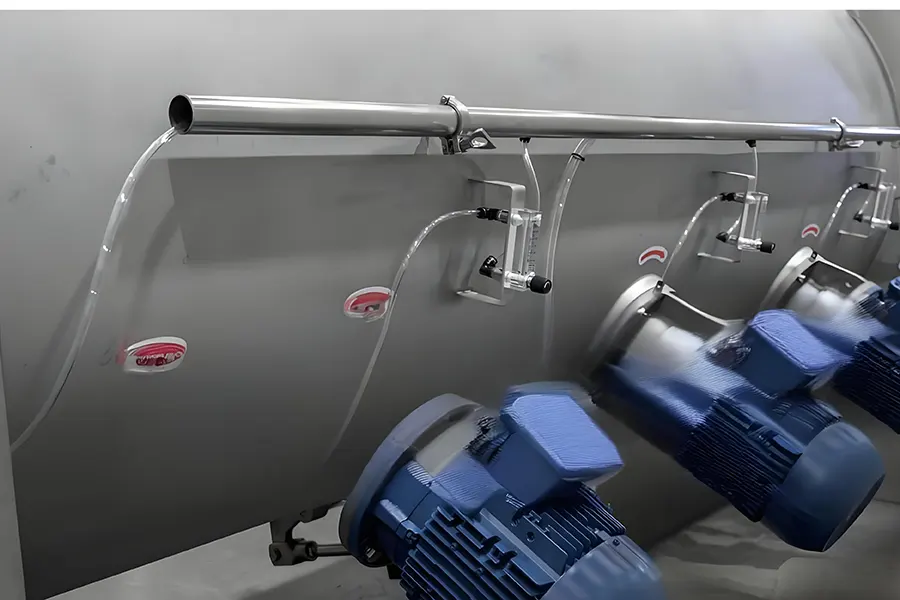

Spray system
An atomizing nozzle can be added above the choppers to achieve liquid addition and mixing. Due to the lower density of the material at this position under the shearing action of the choppers, the atomized liquid is more easily incorporated into the intermixing with the powder.

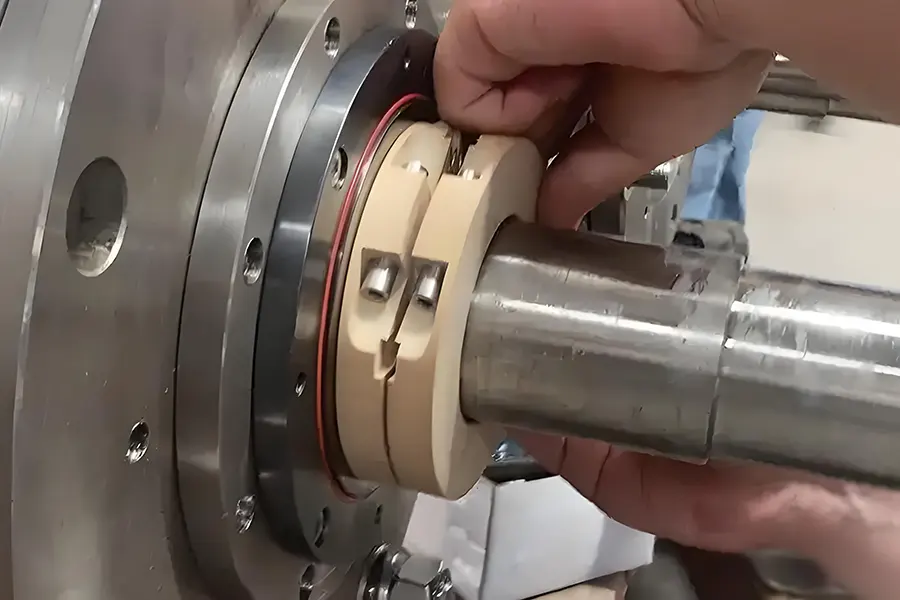

Main shaft seal
When mixing ultrafine powders, the use of a new type of balanced seal and packing seal enhances the airtightness and effectively prevent the flow of gas and powder between the inside and outside of the vessel.
Source Images
Request a technical proposal
Tell Us About Your Mixing Process
Share material behavior, batch size and process constraints. An engineer will review the application and return appropriate technical questions or a tailored configuration.
- Technical response within 24 hours
- Guidance on choppers, seals, controls and discharge
- Pre-shipment test video for confirmed equipment
Related equipment
Compare Other Mixing Platforms
Source equipment details
Plough Mixer Drive, Tooling & Liquid Addition
Source documentation shows the direct-drive arrangement, plough tooling, liquid addition point and main shaft used to configure an LDH mixer.
