SCREW CONVEYOR

Screw Conveyor — Enclosed Powder & Granule Handling System

$1,500–$12,000FOB Factory Price

SC-100 to SC-600 · Ø100–600mm
LS series also available · 1–30m length
Enclosed dust-free · Horizontal & inclined
CE + ISO 9001 · Pre-shipment video test

8,000 m² Factory ISO 9001 + CE️ Enclosed Dust-Free 50+ Countries

OVERVIEW

Enclosed Screw Conveying Technology

The screw conveyor (also called an auger conveyor) uses a rotating helical screw blade inside a tube or trough to move powder and granular materials. Based on Archimedes' screw principle, the rotating flight pushes material along the enclosed casing, providing dust-free transfer. Screw conveyors are the workhorse of powder handling — reliable, low-maintenance, and capable of horizontal, inclined (0-45°), or vertical transport. Our SC/LS series features SS304/316L construction with multiple inlet/outlet positions, reversible operation, and choice of shafted or shaftless screw designs. Ideal for construction materials, chemicals, food powders, and battery materials.

TECHNICAL SPECIFICATIONS

Screw Conveyor — SC Series

Parameter	SC-100	SC-200	SC-300	SC-400	SC-500	SC-600
Screw Diameter (mm)	100	200	300	400	500	600
Max Length (m)	10	20	25	30	30	30
Capacity (m³/h)	1-3	5-15	15-35	30-60	50-100	80-150
Motor Power (kW)	0.75-2.2	2.2-5.5	4-11	7.5-15	11-22	15-30

* LS series: LS-100 to LS-500 also available. SC-150, SC-250 intermediate models.

Ready to Order?

$1,500–$12,000FOB Zhengzhou

Pre-shipment video test
12-month warranty
Lifetime WhatsApp support

Get Quote →

SCREW FLIGHT TYPES

Choose the Right Flight for Your Material

🔄

Full Pitch

Standard flight for free-flowing powders. Most efficient for horizontal conveying.

📏

Variable Pitch

Tighter pitch at inlet for controlled feed. Prevents flooding/flushing.

🎗️

Ribbon Flight

Open-center flight for sticky, cohesive materials. Self-cleaning action.

🔀

Paddle Flight

Mixing paddles between flights. Combines conveying with gentle mixing.

CONFIGURATIONS

Installation Options

➡️

Horizontal

Standard configuration. Most efficient. Up to 30m single unit.

↗️

Inclined (0-45°)

For lifting material. Capacity reduces with angle. Max 45° incline.

⬆️

Vertical

Special high-speed vertical screw for lifting up to 10m.

🧹

Shaftless

For sticky, fibrous, or stringy materials. No center shaft to wrap around.

6 Reasons to Choose Saturn Machinery

Video of YOUR Machine

We test your exact equipment with real material before shipping. You receive the full video. You approve, we dispatch.

15-Day Delivery

Standard models ship in 15 working days. Custom orders in 30-45 days. We stock critical components.

Real Factory

4,000 m2 plant in Zhengzhou. Request a live WhatsApp video tour. Zero middleman markup.

CE + ISO 9001 Certified

Full international compliance. Material certificates available. GMP configurations for pharma.

2-Hour Engineer Response

Direct WhatsApp with the engineer responsible for your order. 2-hour response during business hours.

12-Month Full Warranty

Every component covered. Express spare parts via DHL. On-site commissioning engineer available.

Ready to Get Your Screw Conveyor Price?

Free quote in 24 hours · Video test before payment · No obligation

Get a Free Quote →

SYSTEM INTEGRATION

Where Screw Conveyors Fit in a Production Line

Use enclosed screw conveying to connect bulk storage, mixers, intermediate hoppers and packing equipment. Final geometry is selected around material flow, required lift, cleanability and the discharge rate of adjacent machines.

See how conveying fits into a complete chemical powder line →

Frequently Asked Questions

What is the maximum conveying distance?+

Up to 45m with intermediate hanger bearings. Modular sections for easy installation and maintenance.

What angle can it operate at?+

0-45° incline standard. Vertical configurations available with tubular housing for angles up to 90°.

Is it suitable for food/pharma?+

Yes — SS304/316L with food-grade seals. Cantilever screw design available for easy cleaning and CIP.

What materials can it convey?+

Flour, cement, chemical powder, grain, plastic pellets, ash, sand, feed. Not suitable for sticky or highly abrasive materials.

Get a Quote for Your Screw Conveyor

✅ Custom quote in 24 hours

📋 Request Quote

SOURCE EQUIPMENT DETAILS

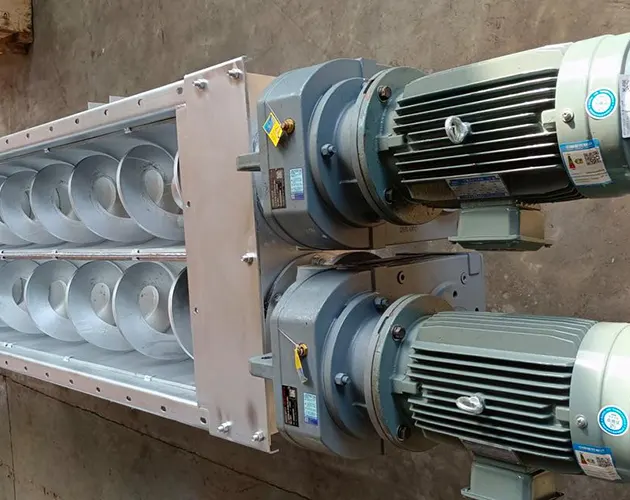

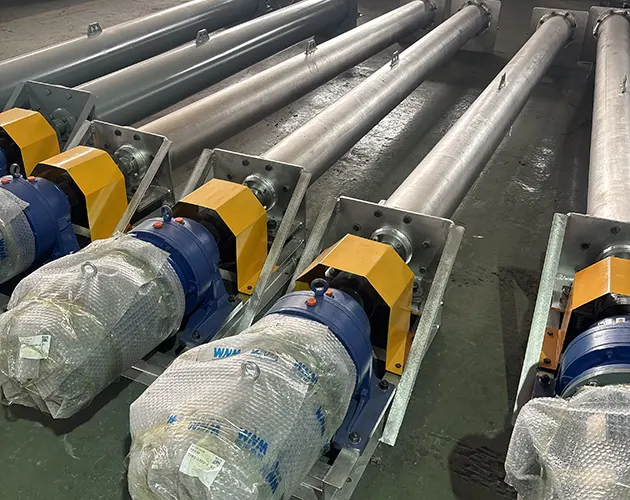

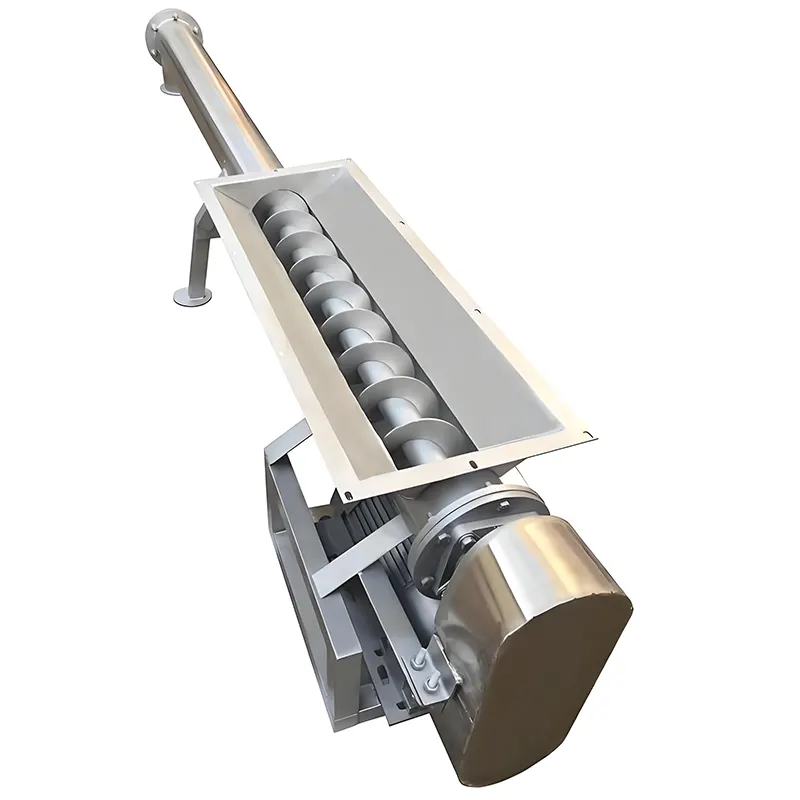

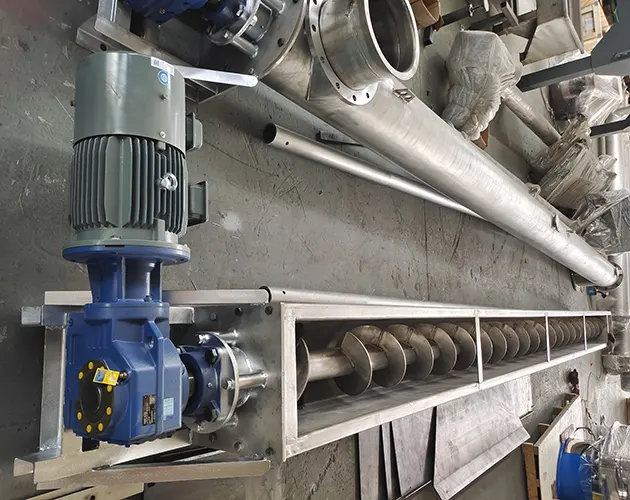

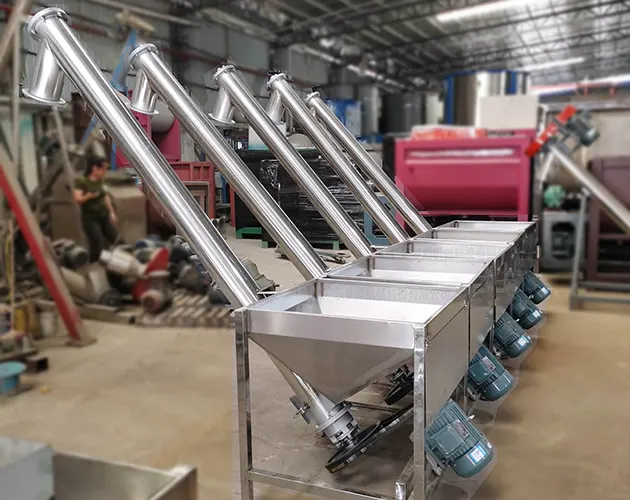

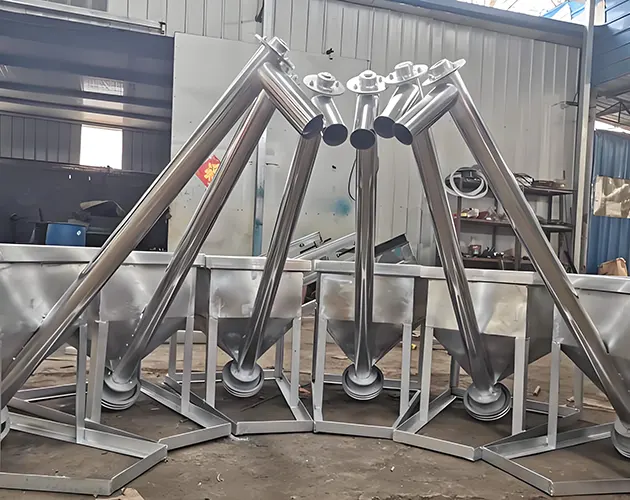

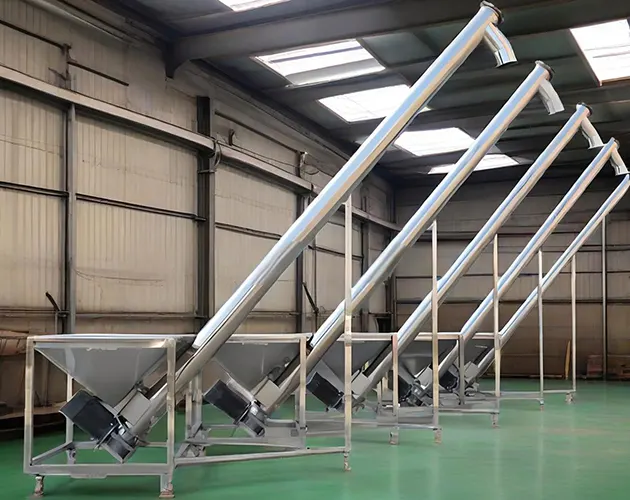

Screw Conveyor Product Gallery

Source product documentation adds installation and component views that complement the flight-type and configuration guidance above.

Product engineering details

Screw Conveyor Engineering Details

Review screw diameter, conveying capacity, layout options and material-contact choices for controlled mechanical transfer of powders and granules.

Introduction

The Screw Conveyor is a robust and efficient workhorse for bulk material handling. Designed to move powders, granules, and small lumps horizontally or on an incline, it delivers a continuous, controlled flow perfect for automated production lines. Its rotating helical screw moves materials smoothly within a sturdy housing, making it a reliable and low-maintenance solution.

Ideal for industries such as food processing, chemicals, pharmaceuticals, and plastics, this conveyor is easily integrated with mixers, hoppers, and packaging machines. Whether you need to feed, transfer, or discharge materials, the Screw Conveyor streamlines your process, reduces manual handling, and keeps your operation running smoothly.

Features

Efficient & Steady Material Flow Provides continuous, reliable transport with a steady, non-pulsating material flow for consistent downstream processing.
Dust-Free Design A sealed housing minimizes spillage and contamination, protects materials from moisture, and maintains a cleaner, safer workplace.
Compact & Flexible Layout Its space-saving, modular design allows for horizontal, inclined, or custom configurations to fit into almost any plant layout.
Industry-Focused Material Options Available in carbon steel or stainless steel 304/316L constructions to meet hygiene, corrosion-resistance, and industry-specific standards.

Source Images
