In chemical powder production, performance is not determined by a mixer alone. A dependable line connects each stage so that materials move safely, batches remain traceable and the final product is ready for packing without avoidable handling steps.
Start with the material and production target
Record bulk density, particle-size range, flow behaviour, abrasiveness, moisture sensitivity and any dust or explosion-risk requirements. Together with batch size and required output, these properties establish the basis for selecting contact materials, feeding arrangements and the right mixing technology.
A practical line sequence
- Raw-material receiving and storage: protected storage and controlled discharge into the process.
- Metered feeding: major and minor ingredients are introduced in a repeatable sequence.

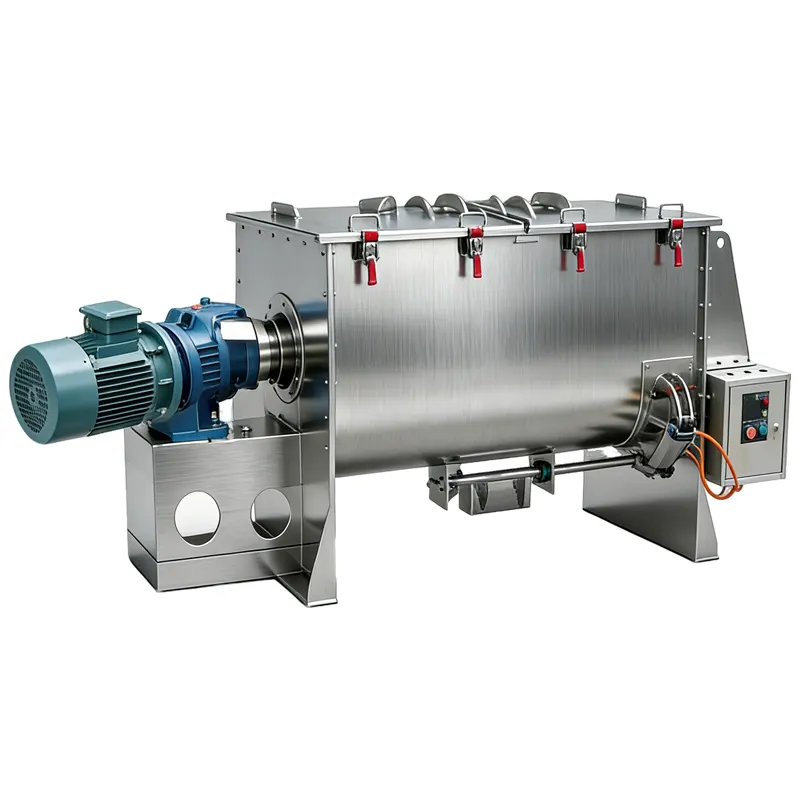

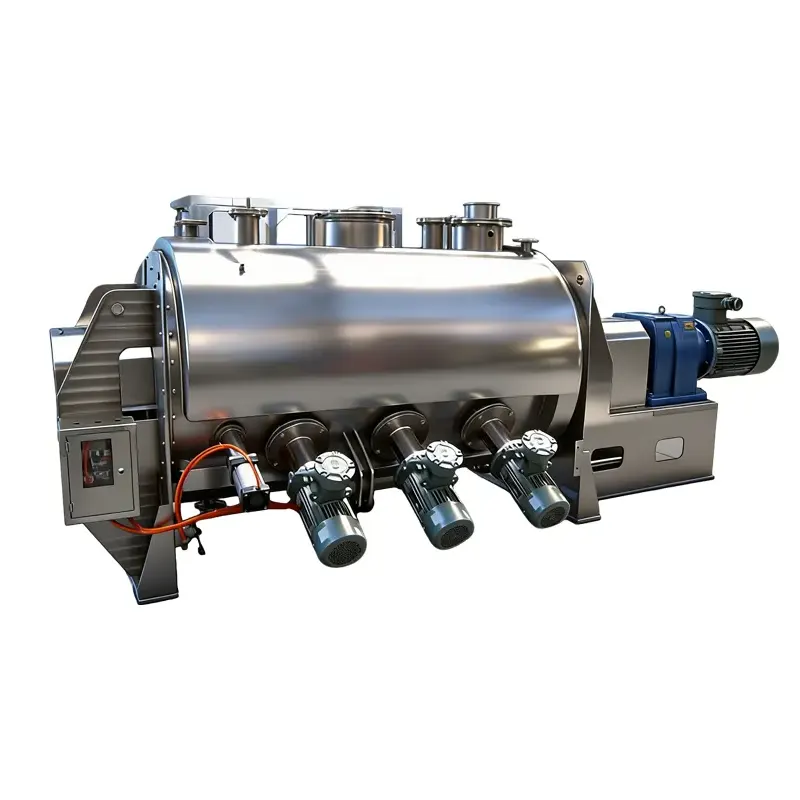

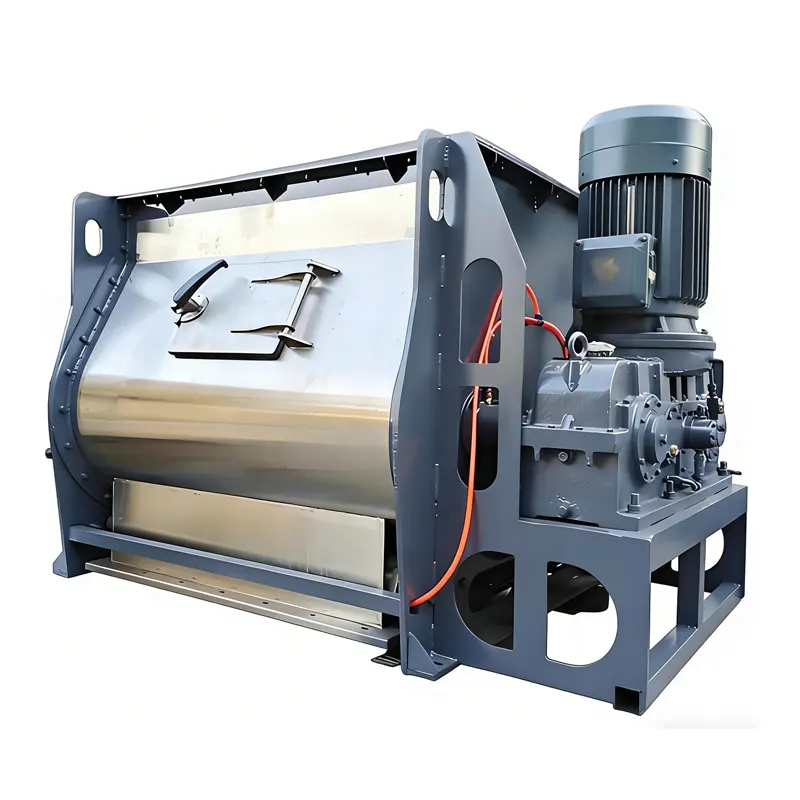

- Mixing or conditioning: a ribbon, paddle or plough mixer is selected according to the material and any liquid-addition step.
- Enclosed transfer: screw or vacuum conveying moves finished material with fewer open handling points.
- Packing and inspection: the product is weighed, packed and prepared for shipment.
Build for safety and maintainability
Chemical installations may need sealed shaft arrangements, dust collection connections, grounding, explosion-protection components and wear-resistant contact parts. Access doors, clean-out points and sensible maintenance clearances help the line remain productive over its working life.
Plan for controlled scale-up
Before finalizing equipment, define the validation approach: trial material, target mixing time, product uniformity and acceptable carryover. A modular layout can make later additions such as extra storage, a second packing station or automation easier to implement.
Why Choose an Integrated Production Line?
In modern chemical manufacturing, mixing, conveying and packaging are interdependent stages in a complete value chain. Traditional segmented production can create dust leakage during transfer, cross-contamination risk, high labour costs and inconsistent batch quality. An integrated, enclosed and automated system connects each operation to improve product quality, workplace safety and efficiency.

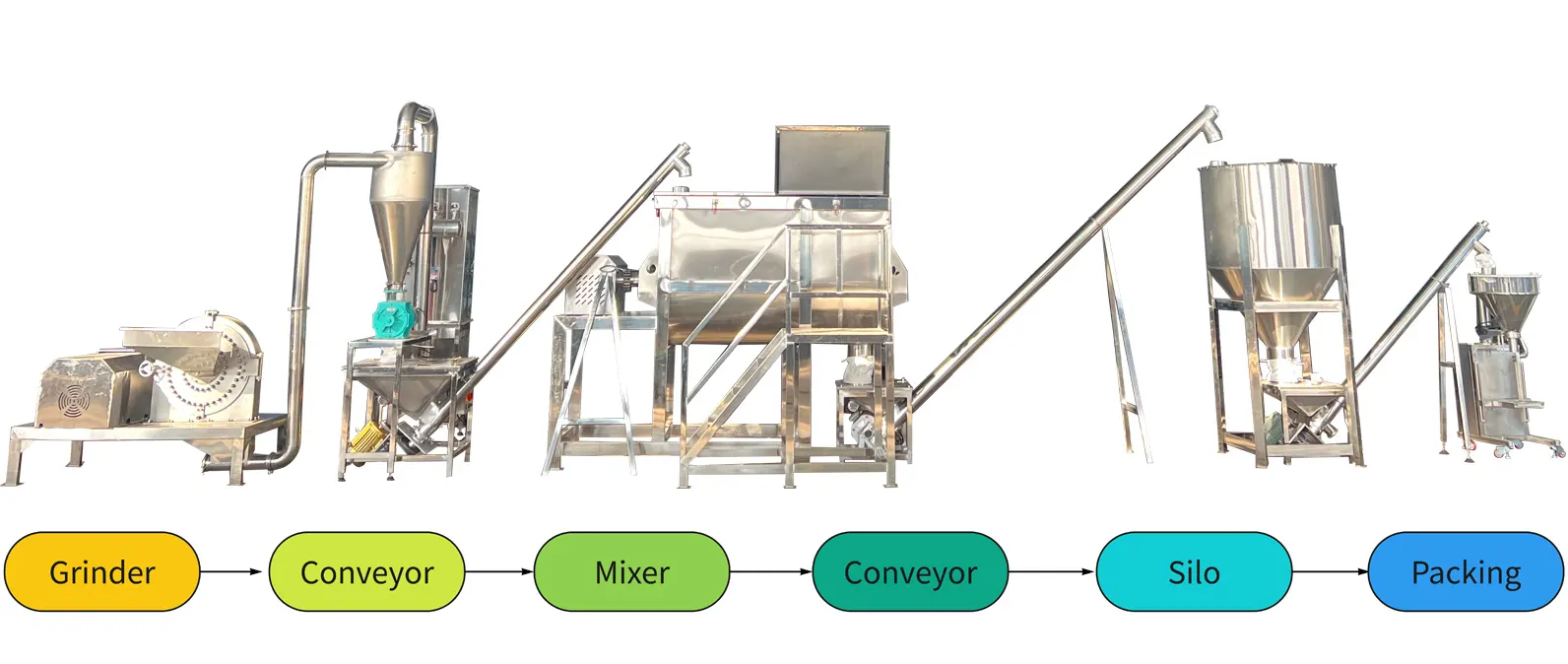

Flow Chart for Powder Production Line
The compact system integrates bag discharging and feeding, mixing, finished-product packaging, centralized controls and dust collection for streamlined, space-saving production.
Feeding & Bag Opening Systems
A combined small-bag and bulk-bag discharging station uses integrated dust collection and vibratory screening to maintain a clean feeding environment and stop oversized particles or debris entering the mixing system.
Enclosed Conveying System
Enclosed conveying prevents dust leakage and cross-contamination, uses energy efficiently and supports modular cleaning. It also limits static-electricity buildup while protecting material integrity.
Mixing & Homogenizing Systems

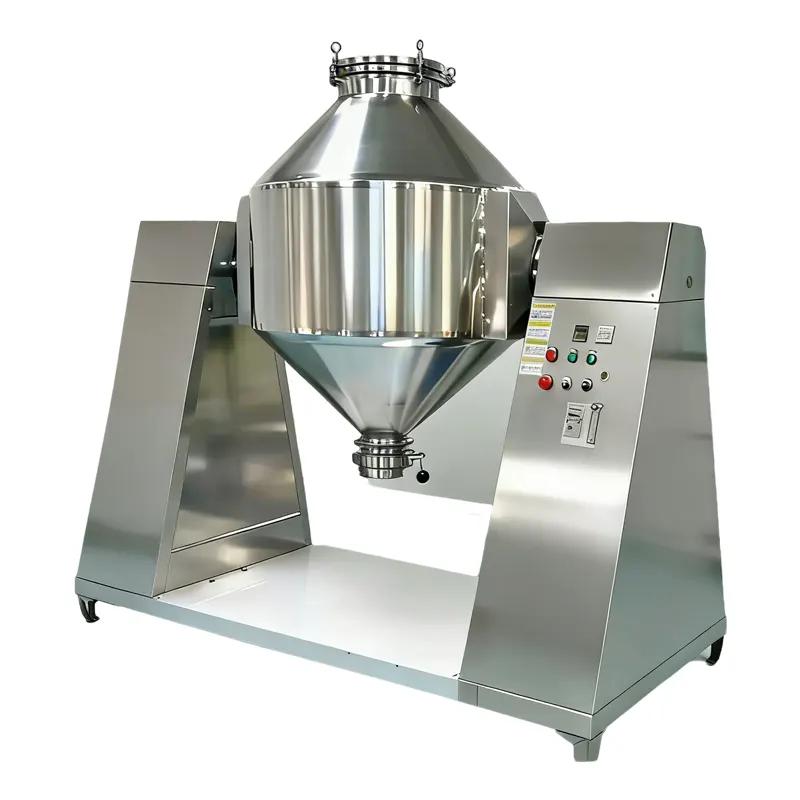

Material characteristics and process requirements determine the mixer selected for the line.
Intermediate Storage & Screening
Surge hoppers and buffer bins balance batch-mixing and continuous-packaging capacity, allowing the mixer to run without interruption.
Automated Packaging Systems
Finished material moves to storage through the mixer discharge. An arch-breaking device prevents bridging; a pneumatic butterfly valve and valve packing machine respond to load-cell output for efficient, accurate, low-dust packing.
Planning a Chemical Powder Line?
Tell us your material, batch size and production objective. We can discuss a mixer, conveyor and packing configuration suited to the process.
