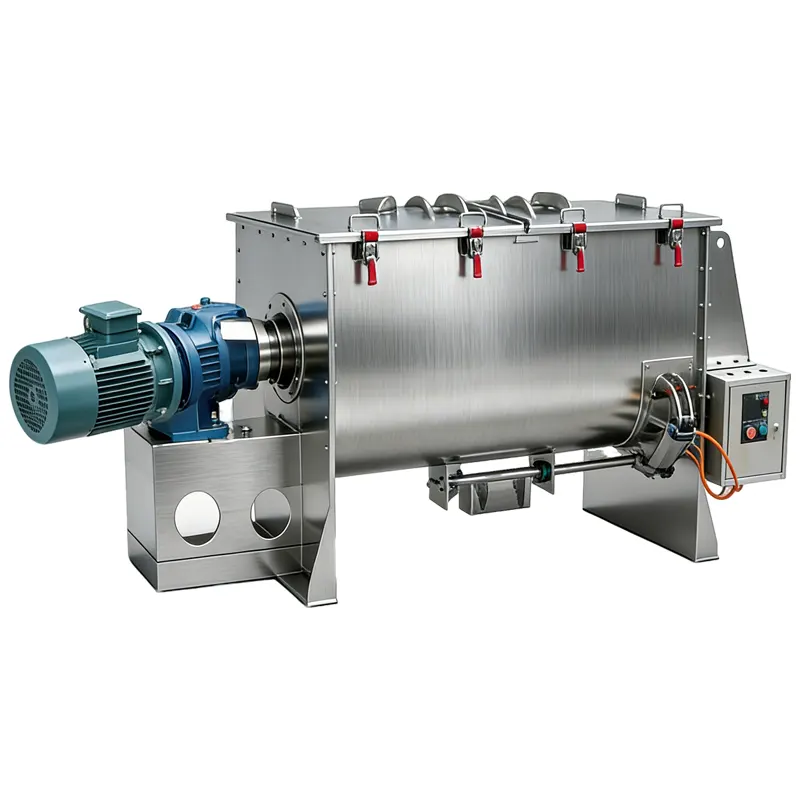

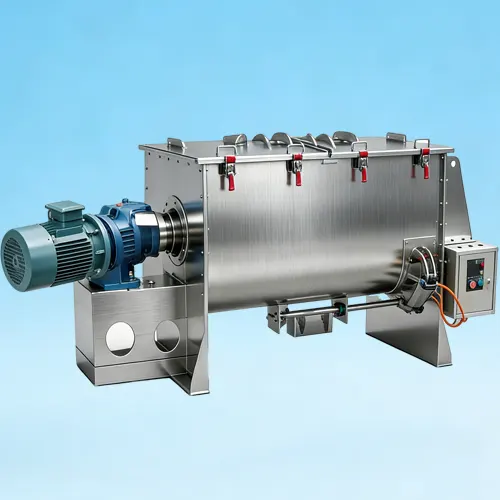

Ribbon Mixer
- Working Volume0.1–15 m³
- Batch Weight0.3–15 tons
- MaterialSS304/316L or Carbon Steel
- Mixing Time5–20 min
- AgitatorDouble Helical Ribbons
- ProcessBatch or Continuous
- OptionsHeating/Cooling Jacket, Vacuum
RIBBON BLENDER · POWDER PROCESSING SYSTEMS
Industrial Ribbon Blenders.
Built for your material.
Configure mixing, conveying and packing equipment around material behavior, batch target and process layout—with a documented, factory-direct project path.
- 100L–20,000L mixing configurations
- SS304 and SS316L contact options
- Material, layout and capacity review
- Video inspection before dispatch
Local factory footage — ribbon blender manufacturing and assembly.
Since 2013Manufacturing experience
4,000 m²Production facility
500+Machines delivered
40+ countriesExport experience
CE + ISO 9001Quality-system support
MIXER SELECTION
Ribbon Blenders Built for YOUR Material
Not sure which model fits your process? Tell us your material and capacity—we will recommend the right configuration.

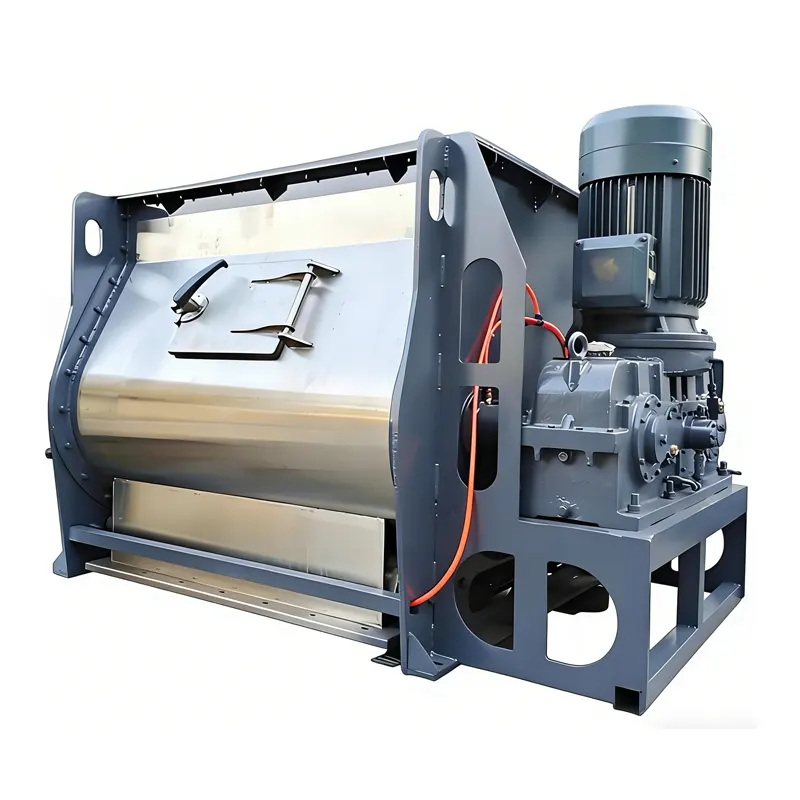

Double Paddle Mixer
- Working Volume0.1–15 m³
- Batch Weight0.3–15 tons
- MaterialSS304/316L or Carbon Steel
- Shaft Speed29–43 rpm
- ProcessBatch or Continuous
- OptionsChopper, Spray Line, Jacket

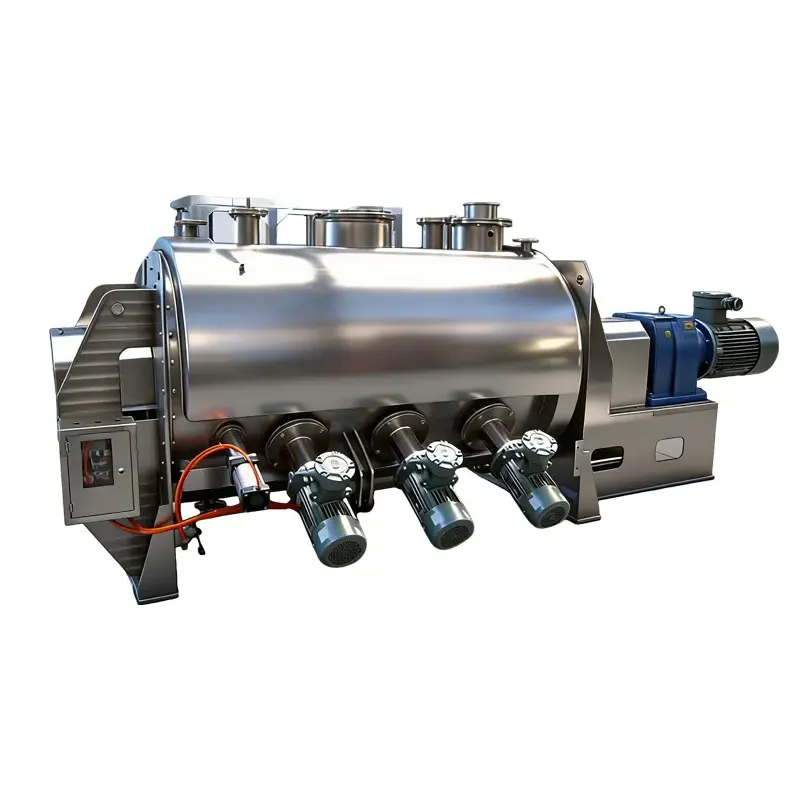

Plough Shear Mixer
- Working Volume0.1–20 m³
- Batch Weight0.3–15 tons
- MaterialSS304/316L or Carbon Steel
- Shaft Speed94–200 rpm
- Mixing ToolsAdjustable & Replaceable
- Liquid AdditionOptional Atomizing Spray

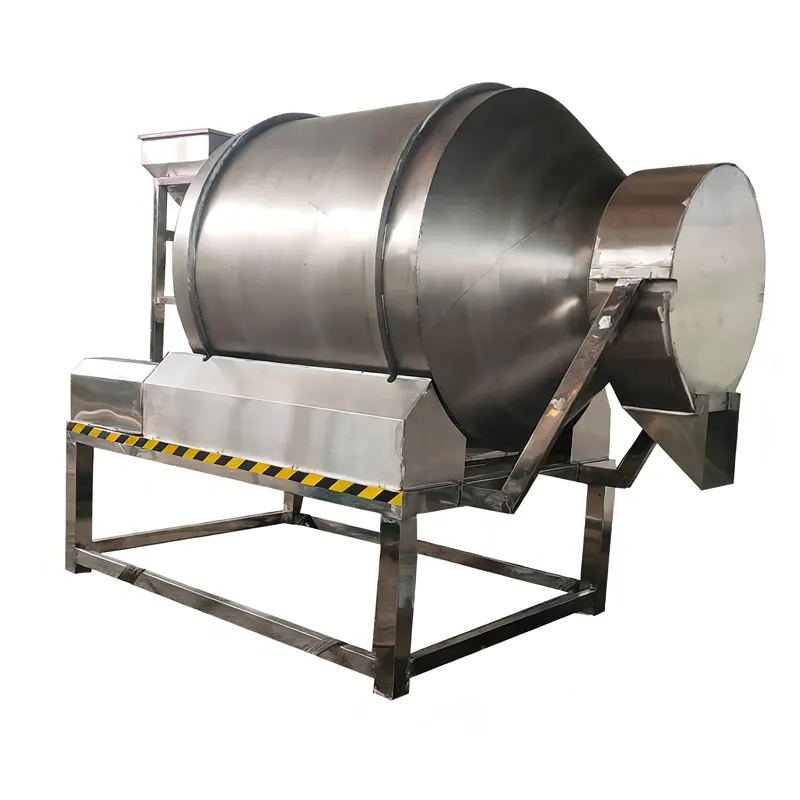

Rotary Drum Mixer
- Working Volume100–5,000 L
- MaterialSS304/316L
- Motor Power3–15 kW
- Mixing ActionGentle Tumble
- Suitable FormsPowders, Granules & Flakes
- OptionsHeating/Cooling Jacket

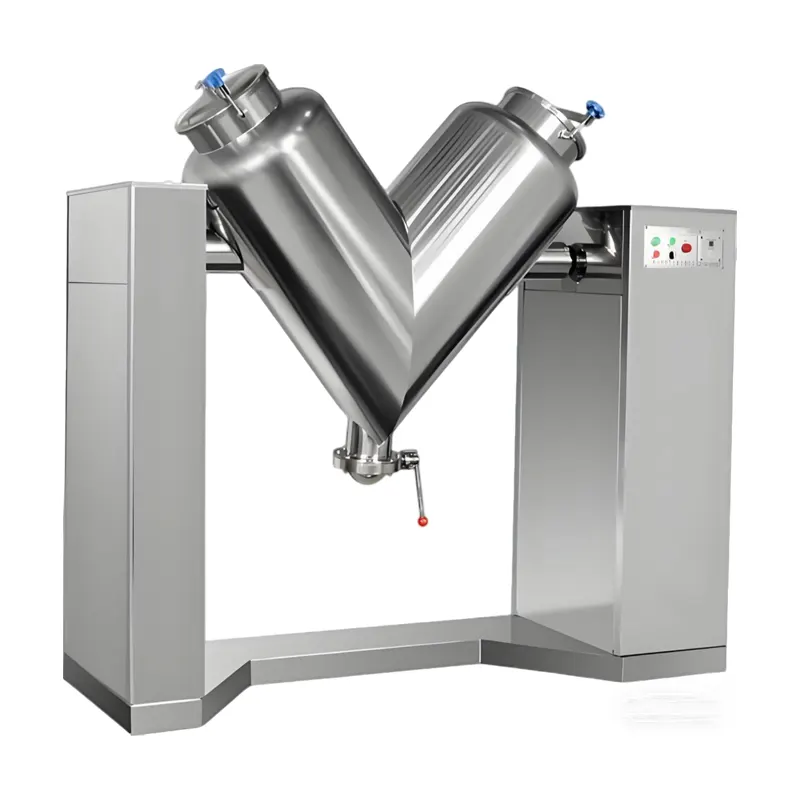

V-shape Powder Mixer
- Design Volume100–2,000 L
- Effective Capacity20–1,000 L
- MaterialSS304/316L
- Mixing Time5–15 min
- Motor Power1.5–5.5 kW
- Rotation Speed12–15 rpm
- OptionsSpray, Jacket or Vacuum

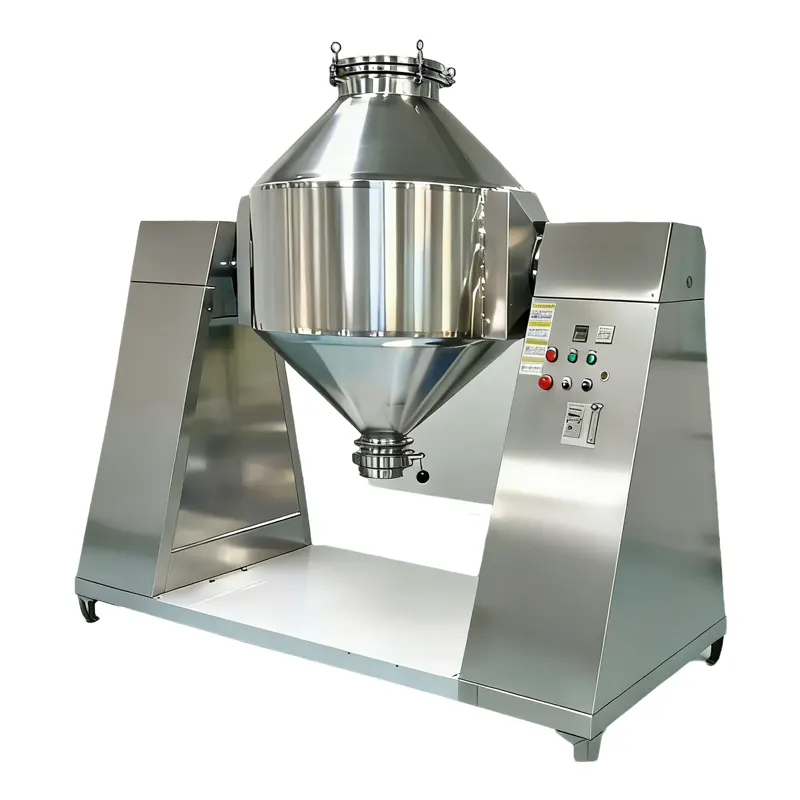

Double Cone Mixer
- Design Volume100–4,000 L
- Effective Capacity30–2,000 L
- MaterialSS304/316L or Carbon Steel
- Mixing Time5–8 min
- Motor Power0.75–11 kW
- Rotation Speed9–15 rpm
- DischargeButterfly Valve, No Dead Zone
- OptionsHeating, Cooling or Drying
RIBBON BLENDER TECHNOLOGY
Ribbon Blender Working Principle
The ribbon blender consists of a U-shaped horizontal trough, a double helical ribbon agitator, and a drive system. It is designed to achieve fast and uniform mixing of powders, granules, and low-viscosity materials.
Inside the mixing chamber, the inner and outer ribbons rotate simultaneously with the main shaft. The outer ribbon pushes material from both ends toward the center, while the inner ribbon moves material from the center toward both sides.
Axial movement, radial mixing and shear repeatedly disperse and recombine material. The bottom-center discharge is designed for efficient batch release with minimal residue.
Features
- Ribbon and paddle agitator designs
- Gentle mixing for fragile materials
- Easy cleaning and maintenance
- Food-grade packing gland seal
- Jacket and vacuum options
- Heavy-duty design
- Batch or continuous process
- Configurable material-contact parts
Applications
- Food & Dairy: Milk powders, formula, protein blends, coffee/tea powders and spice mixes.
- Chemicals: Pigments, dyes, ceramic powders, metal powders and catalysts.
- Pharma & Nutrition: APIs, excipients, vitamin premixes and fine powder formulations.
- New Energy: Cathode/anode powders, additives, electrolytes and coating powders.

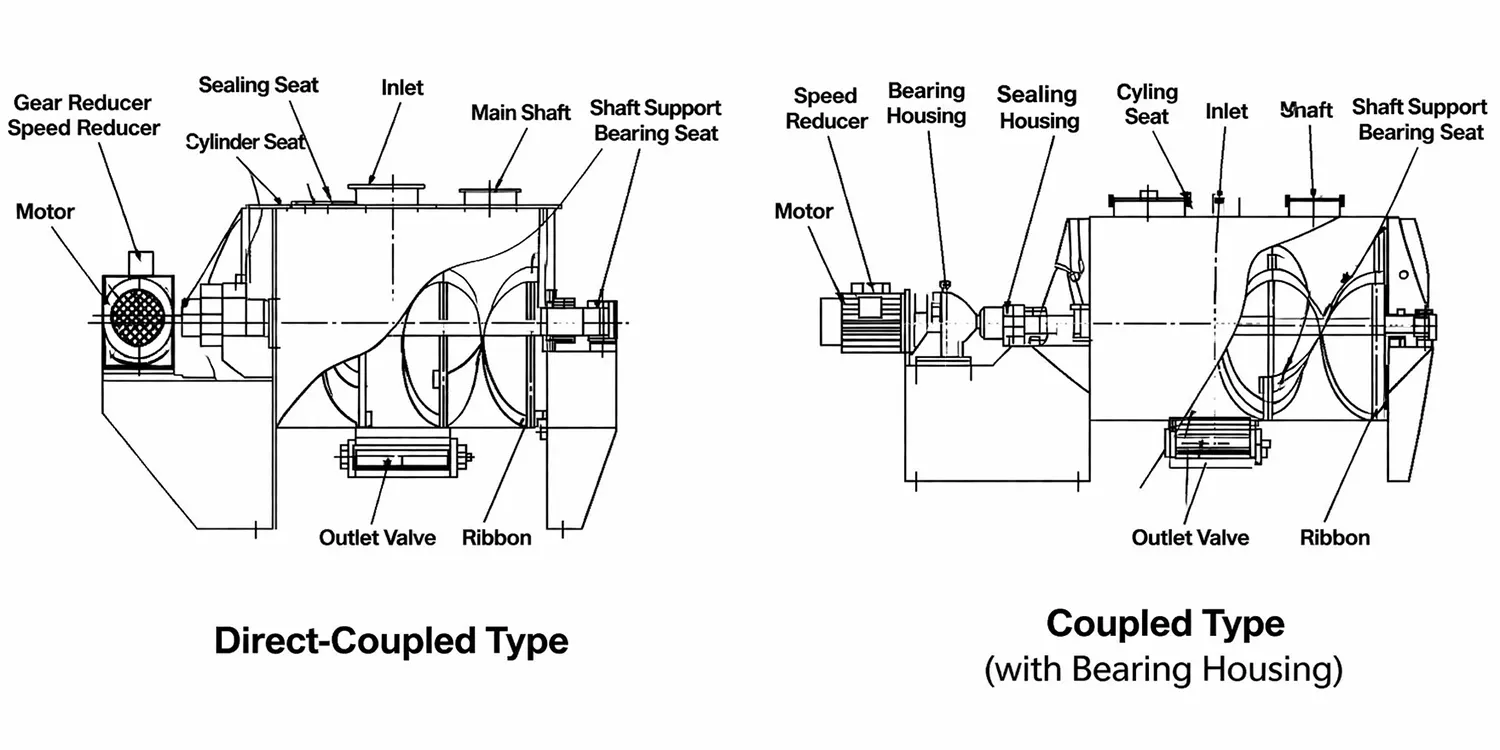

MACHINE DETAILS
Details

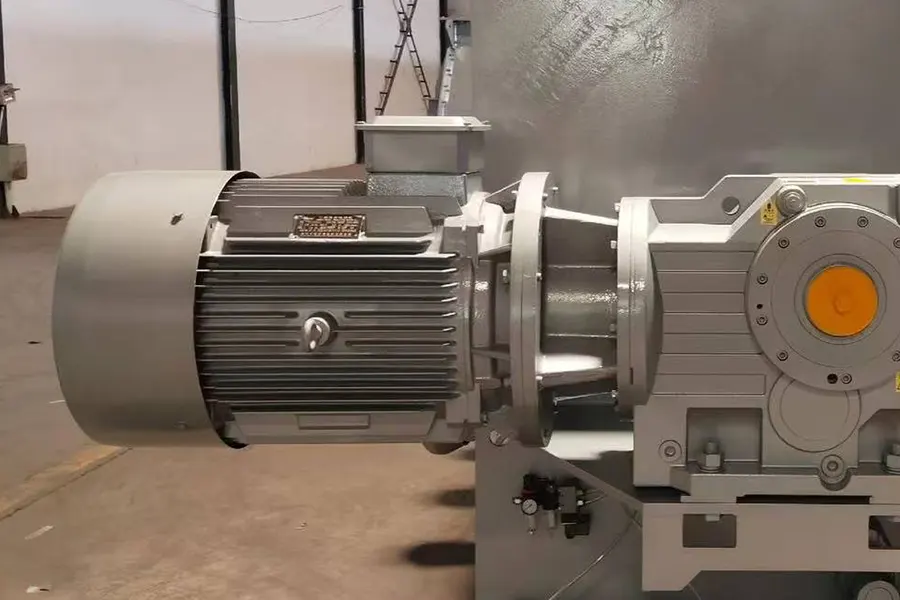

Drive unit
Gear-reducer drive configurations are selected for torque, reliability and low-noise operation.

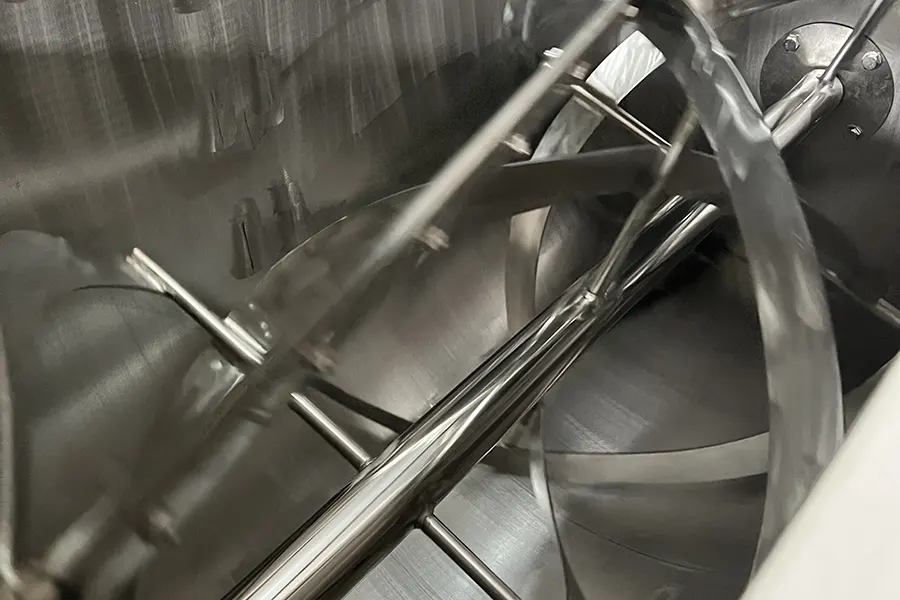

Detachable ribbon main shaft
Accessible ribbon-shaft construction supports cleaning, inspection and maintenance.

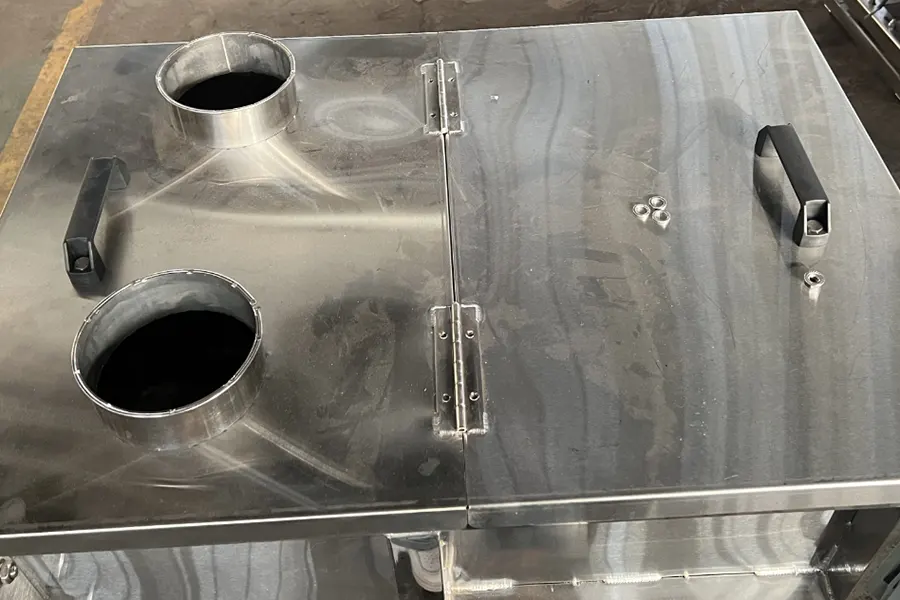

Inlets
Open, half-open or sealed inlet configurations can be matched to the loading method.

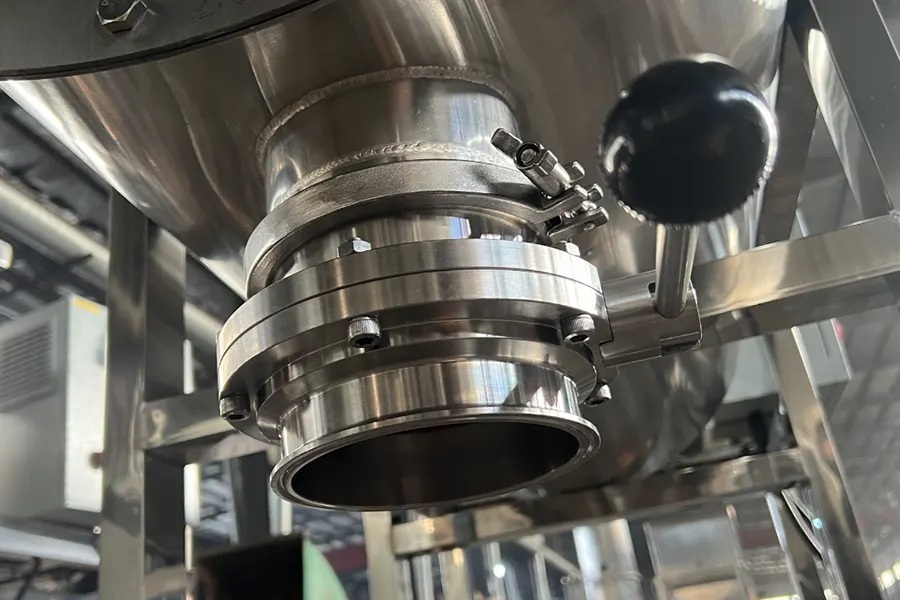

Discharge valve
Bottom discharge can be configured for controlled, efficient batch release.

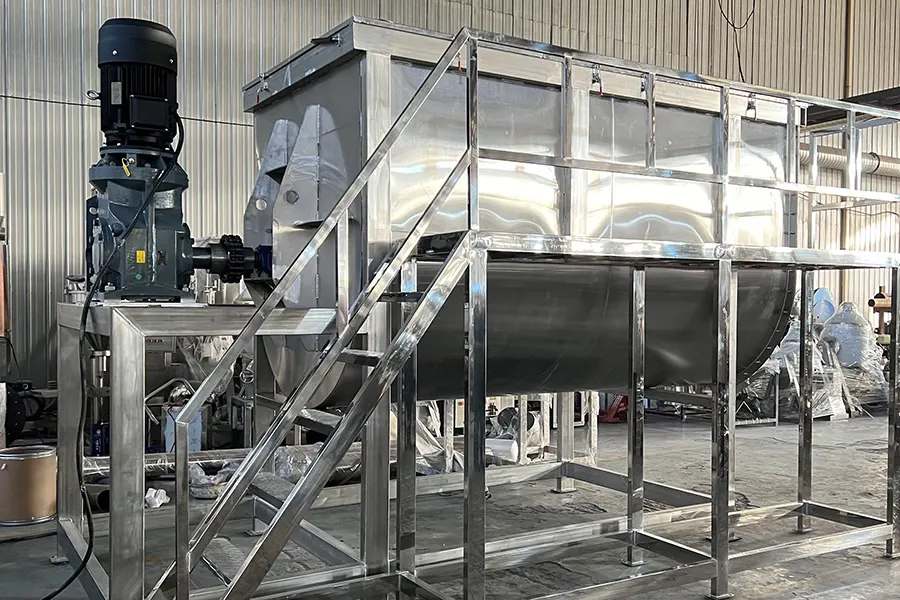

Heating/cooling jacket
Optional external jackets support temperature-managed processing.

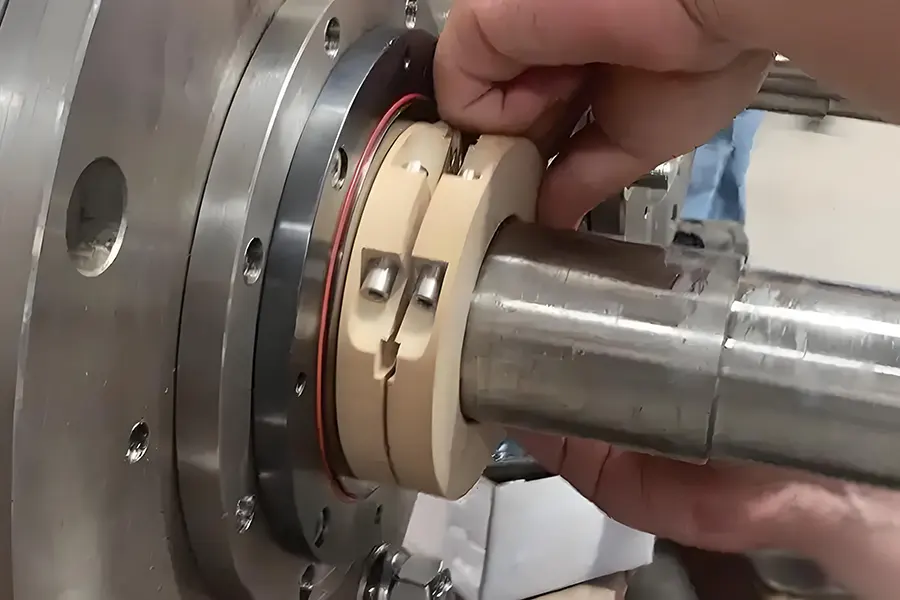

Main shaft seal
Sealing options help suit fine-powder containment and process requirements.
TECHNICAL DATA

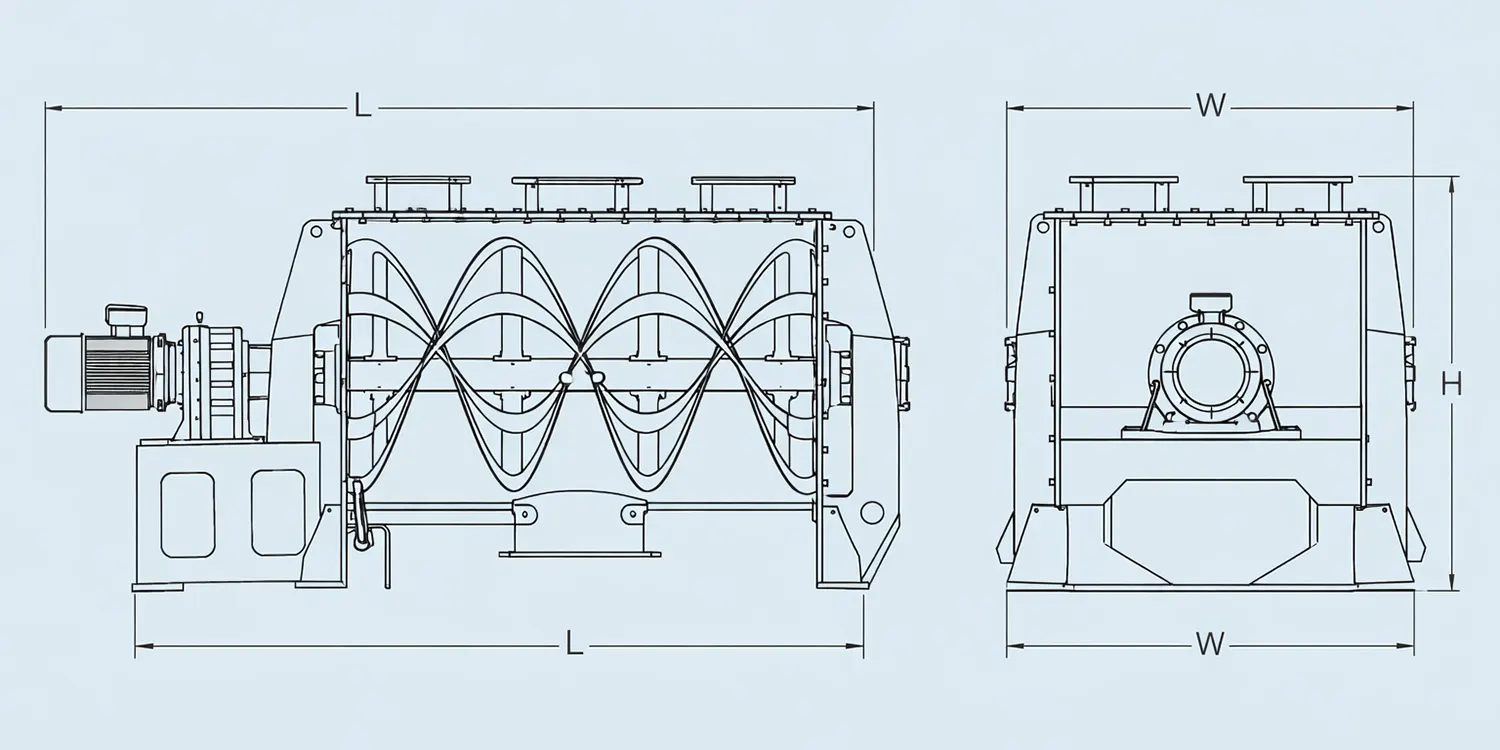

Ribbon Mixer Specifications
| Gross Volume (L) | Effective Volume (L) | Overall Dimensions (mm) | Shaft Speed (rpm) | Approx. Weight (kg) |
|---|---|---|---|---|
| 100 | 40–60 | 1300×550×1100 | 10 | 1310 |
| 300 | 120–180 | 1900×700×1200 | 56 | 570 |
| 500 | 200–300 | 2200×850×1400 | 52 | 840 |
| 1000 | 400–600 | 3200×1070×1600 | 43 | 1760 |
| 1500 | 600–900 | 3400×1170×1700 | 38 | 1940 |
| 2000 | 800–1200 | 3750×1270×1900 | 35 | 2740 |
| 3000 | 1200–1800 | 4100×1460×2100 | 30 | 3340 |
| 4000 | 1600–2400 | 4400×1570×2250 | 27 | 4210 |

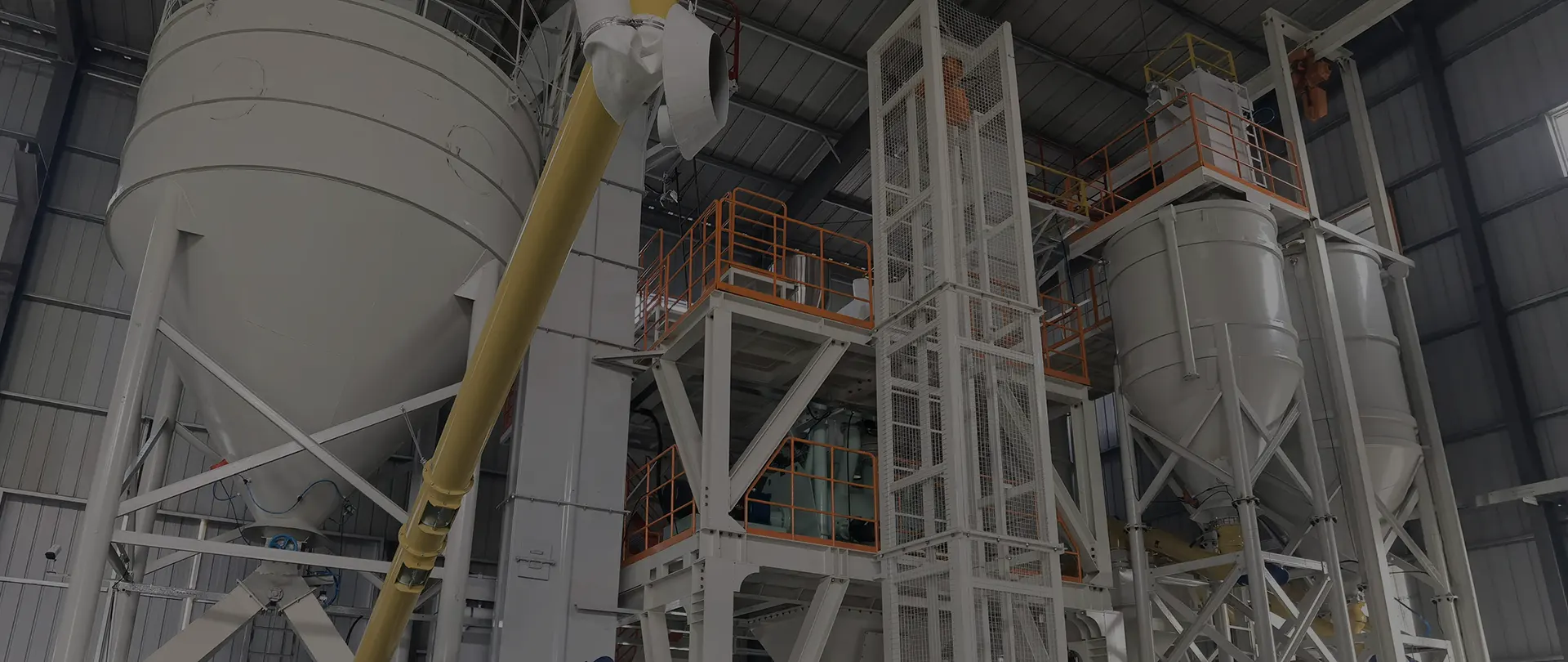

FULL-LINE SUPPLY
One connected route from feeding to packing.
Plan feeding, mixing, transfer and packing together, then go directly to the machine pages that support each stage.
Discuss My Production Line
COMPLETE YOUR PRODUCTION LINE
Supporting equipment for a complete process.
Four machines connect the mixer to receiving, transfer and finished-product packing.
PACKING

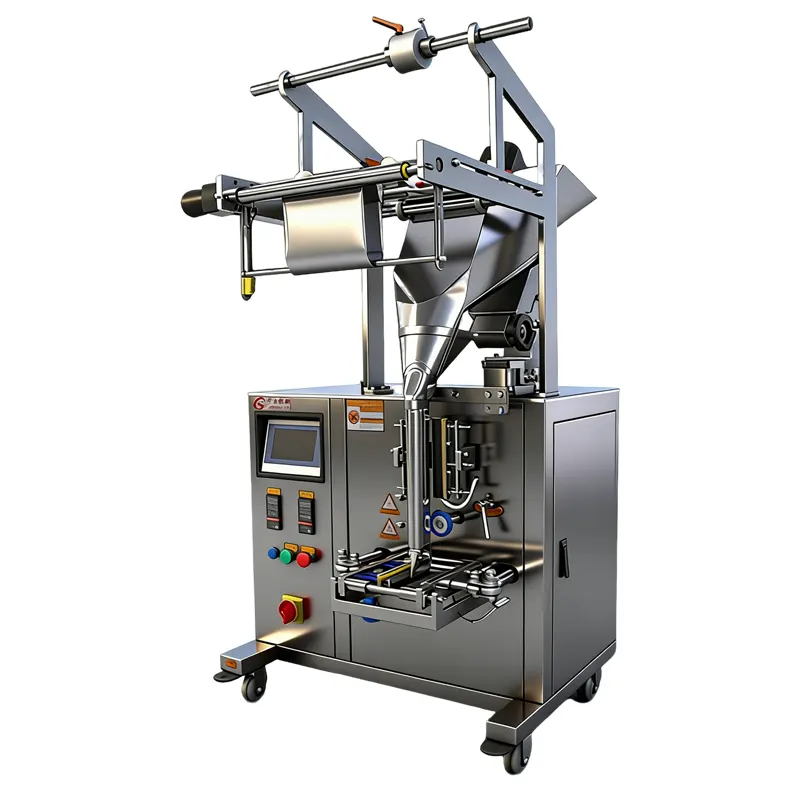

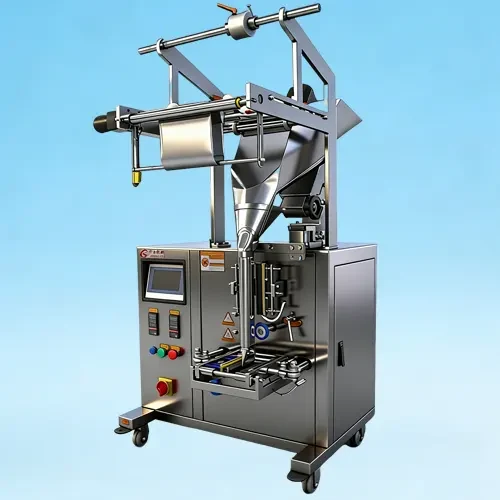

Powder Packing
Controlled filling for finished powder.
View equipment →

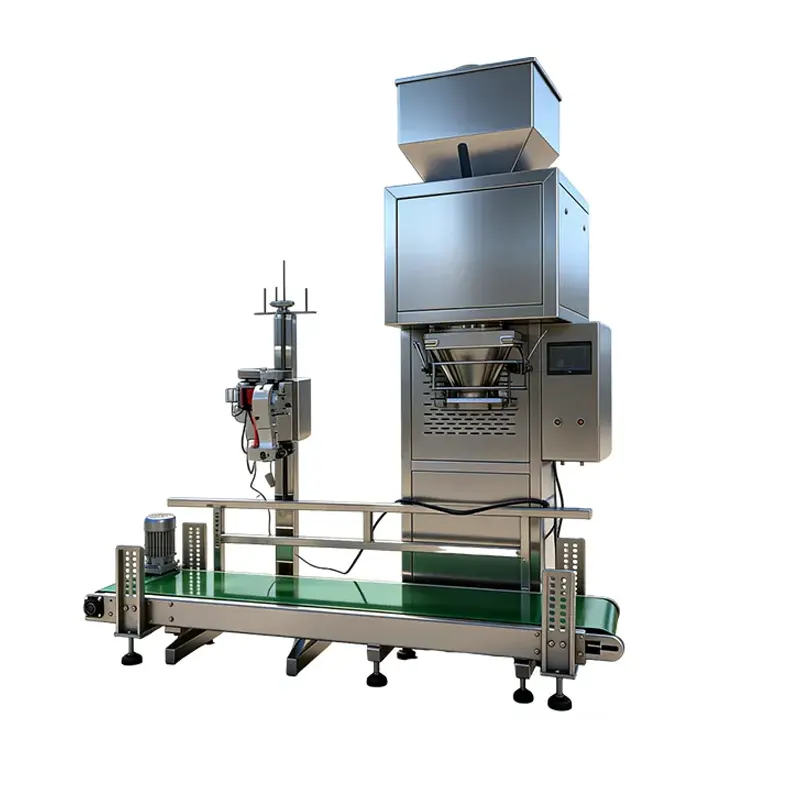

BULK PACKING

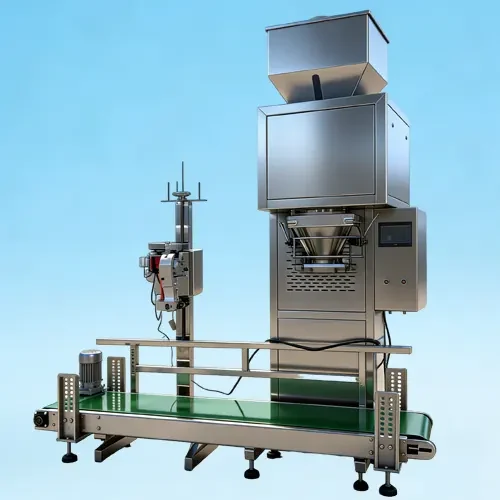

Big Bag Packing
Bulk filling for larger pack formats.
View equipment →
FEEDING

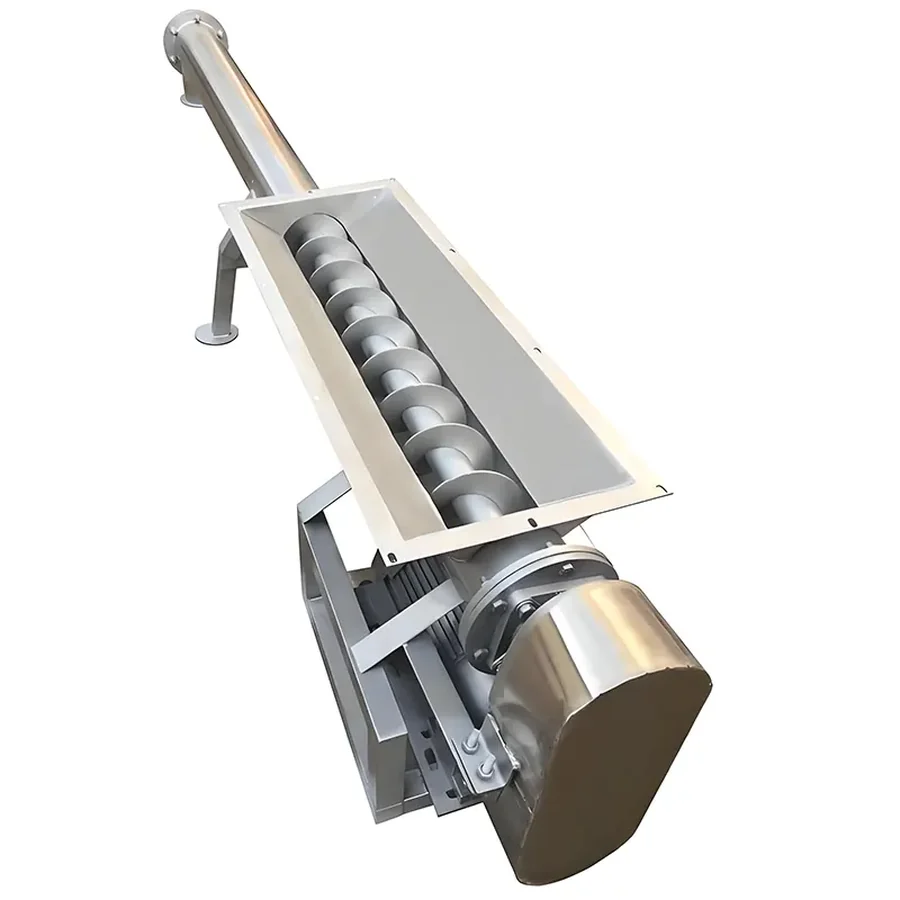

Screw Conveyor
Consistent powder and granule feeding.
View equipment →
ENCLOSED TRANSFER

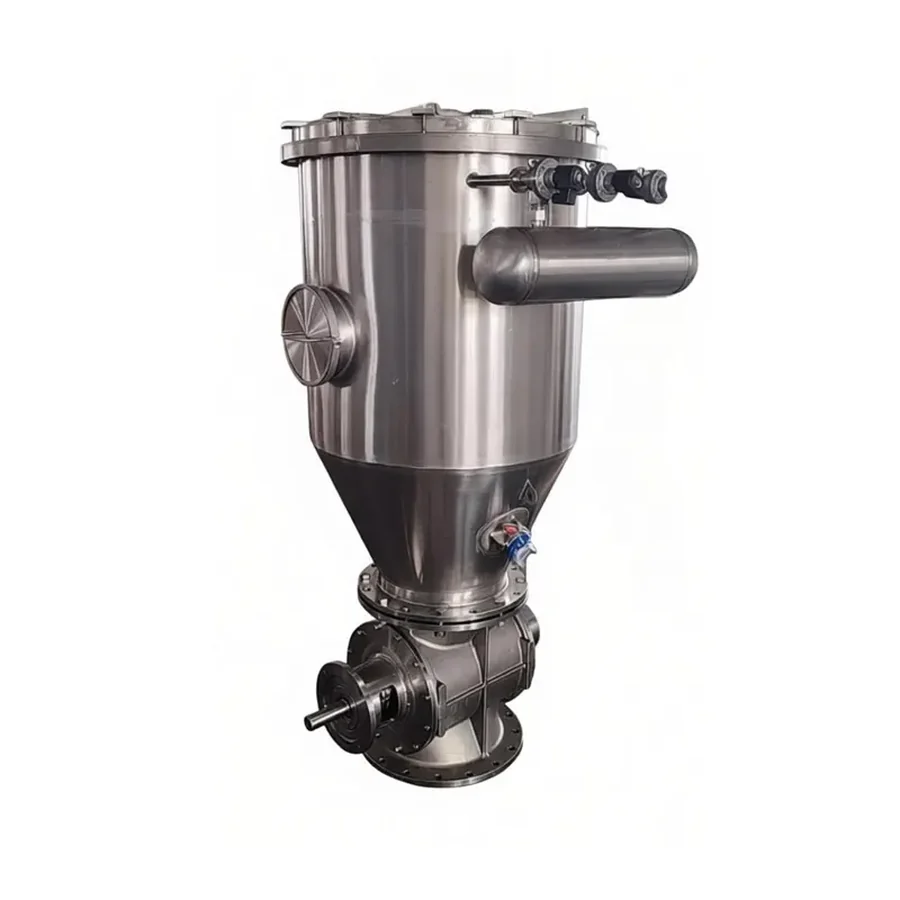

Vacuum Conveyor
Dust-controlled transfer between stages.
View equipment →SUITABLE FOR A VARIETY OF MATERIALS
Find the right mixer for your material.
From free-flowing powders to dense granules, each configuration is matched to material behavior, batch size and cleaning standard.
01FOOD INGREDIENTS
Spice Powder
Uniform seasoning blends with repeatable dispersion.
02BEVERAGE MIXES
Coffee Powder
Consistent blending for premix formulas.
03BAKERY
Flour
Reliable mixing for bakery additives and premixes.
04COATINGS
Pigment Powder
Even color distribution for pigments and fillers.
05NUTRITION
Protein Powder
Gentle, uniform blending for supplement formulas.
06PHARMACEUTICAL
Health Products
Controlled handling for health-product powders.
07SPECIALTY MATERIALS
Lab Formulations
Fine-powder and technical applications.
08CHEMICAL
Detergent
Uniform incorporation of powder additives.
09AGRICULTURE
Grain
Balanced mixing for grains and feed ingredients.
LATEST NEWS & PROCESS INSIGHTS
New resources for your production process.
Practical guidance on mixing, conveying and complete powder-processing lines for food, chemical and advanced-material manufacturers.
ADVANCED MATERIALS · APRIL 2026

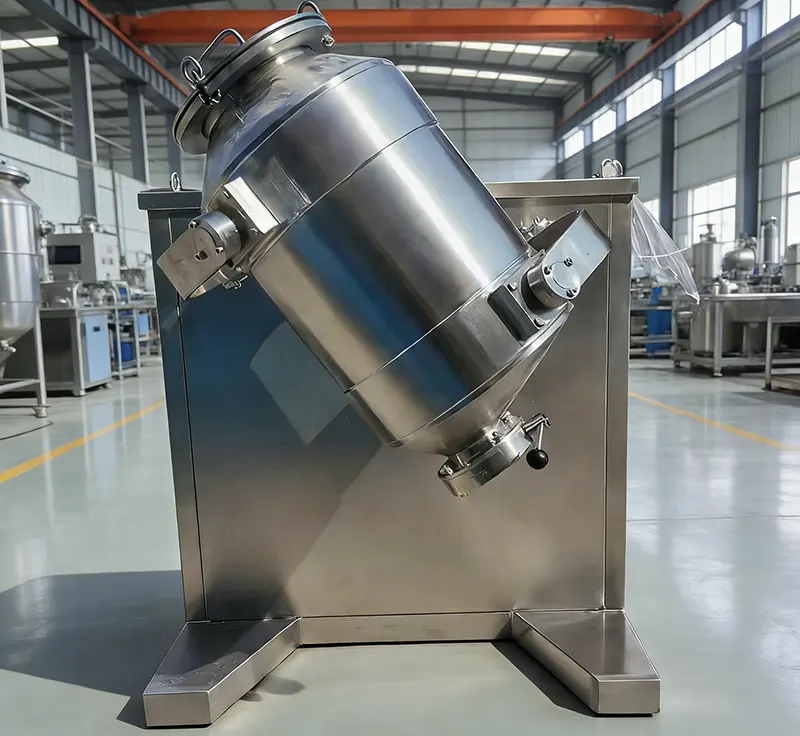

How to Properly Mix Metal Powders
A three-dimensional mixing approach for metal powders and sensitive ceramic formulations.
Read article →
CHEMICAL · MARCH 2026

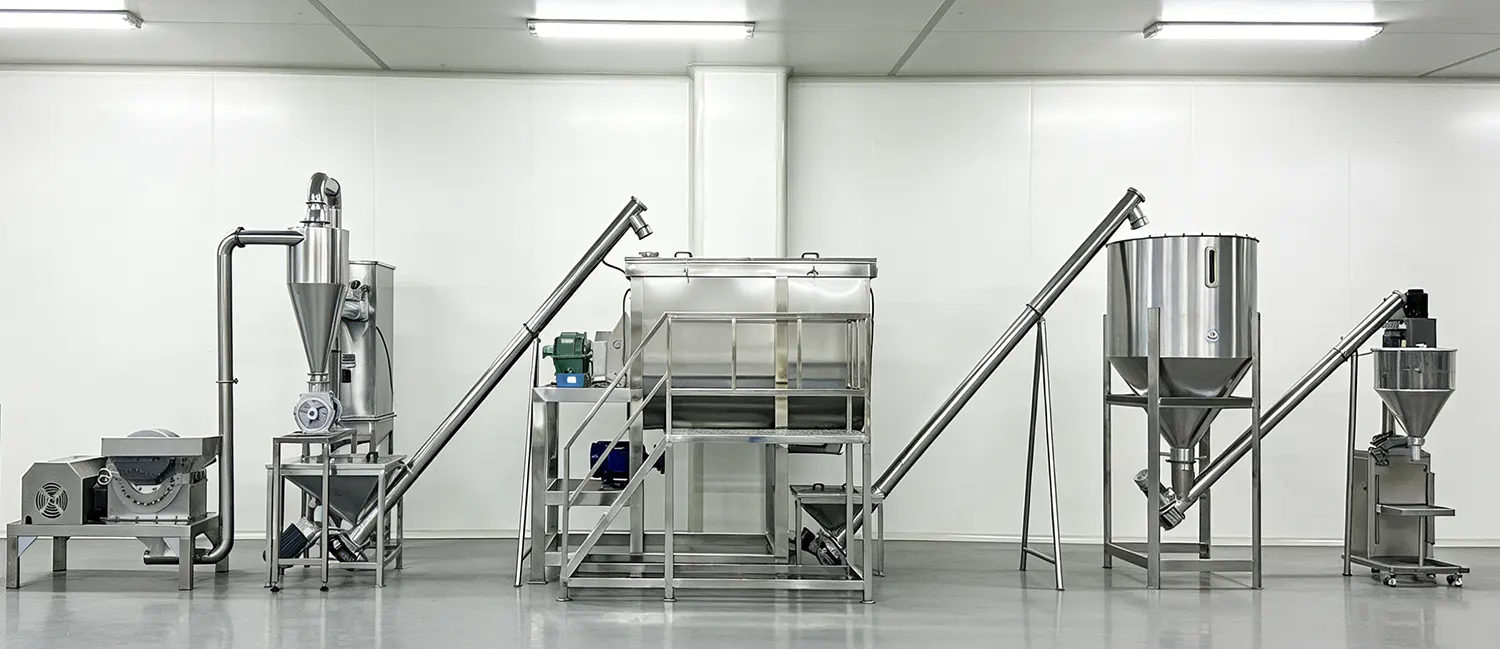

Industrial Mixing Solutions for Detergent Production
How controlled loading, mixing and liquid addition support consistent detergent quality.
Read article →
FOOD · MARCH 2026

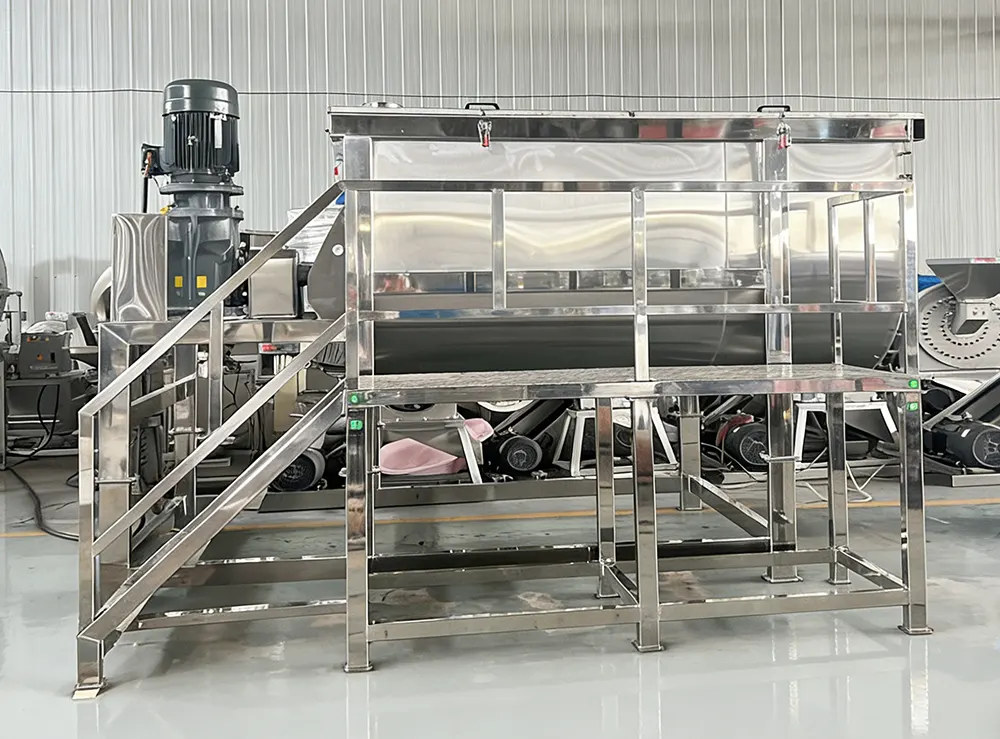

Ribbon Mixer: A Great Helper in Food Processing
Why a ribbon mixer is a versatile choice for dry blends, seasonings and premixes.
Read article →
FOOD · MARCH 2026
Industrial Mixers for Large-Scale Flour Processing
Build repeatable flour premixes while managing trace additions and cleaning requirements.
Read article →BUYER CONCERNS, ADDRESSED BEFORE ORDER
Source with clearer delivery, evidence and support expectations.
Each visual represents a common procurement risk and the project checkpoint that helps control it.
“60 Days Late. My Production Line Is Stopped.”
Align delivery milestones with your production plan and request clear build-progress updates for confirmed equipment.
“The Photos Were Perfect. The Machine Was Junk.”
Review a recorded video of the finished machine and its operating condition before final dispatch arrangements.
“It Broke After 3 Months. They Ghosted Me.”
Clarify warranty scope, technical contact routes and spare-parts support before commissioning begins.
“The Price Was $3,000. The Extras Were $2,500.”
Confirm the equipment scope, packing and applicable FOB, CIF or DDP delivery terms in one quotation.
WHY BUYERS CHOOSE US
Six reasons buyers stay in control.
A clearer project path from material review through factory inspection and shipment.
Discuss the process clearly.
Start with material, capacity and configuration—not a generic machine.
Choose relevant options.
Review contact materials, discharge and control requirements.
Review before dispatch.
Use video inspection as a defined project checkpoint.
Connect every stage.
Consider conveying, mixing and packing as one material path.
Keep one communication route.
Maintain a clear channel for technical questions and support.
Start with the material.
Use the material gallery to frame a useful equipment discussion.
FACTORY VIDEO & BUYER PROOF
Watch the equipment, then review the evidence.
Factory footage, defined project checkpoints and documented quality gates keep the purchase decision visible.
Recorded local factory video — review the workshop and equipment footage.
Video confirmation before dispatch
Use recorded factory footage and a finished-machine review as a defined project checkpoint.
Keep the technical discussion clear
Share material, capacity and required options so the equipment path can be assessed accurately.
Move from factory check to shipment
The eight-stage quality workflow documents the path from material receipt to export packing.
QUALITY ASSURANCE · 08 DOCUMENTED GATES
How each mixer moves through the factory.
Every photo below corresponds to a production or inspection gate before delivery.
01 · MATERIAL RECEIPT
Material Inspection
Specified materials verified before fabrication.
02 · PRECISION CUTTING
Laser Cutting
Prepared components for accurate fabrication.
03 · WELD INTEGRITY
TIG Welding
Controlled joining of process parts.
04 · MECHANICAL FIT

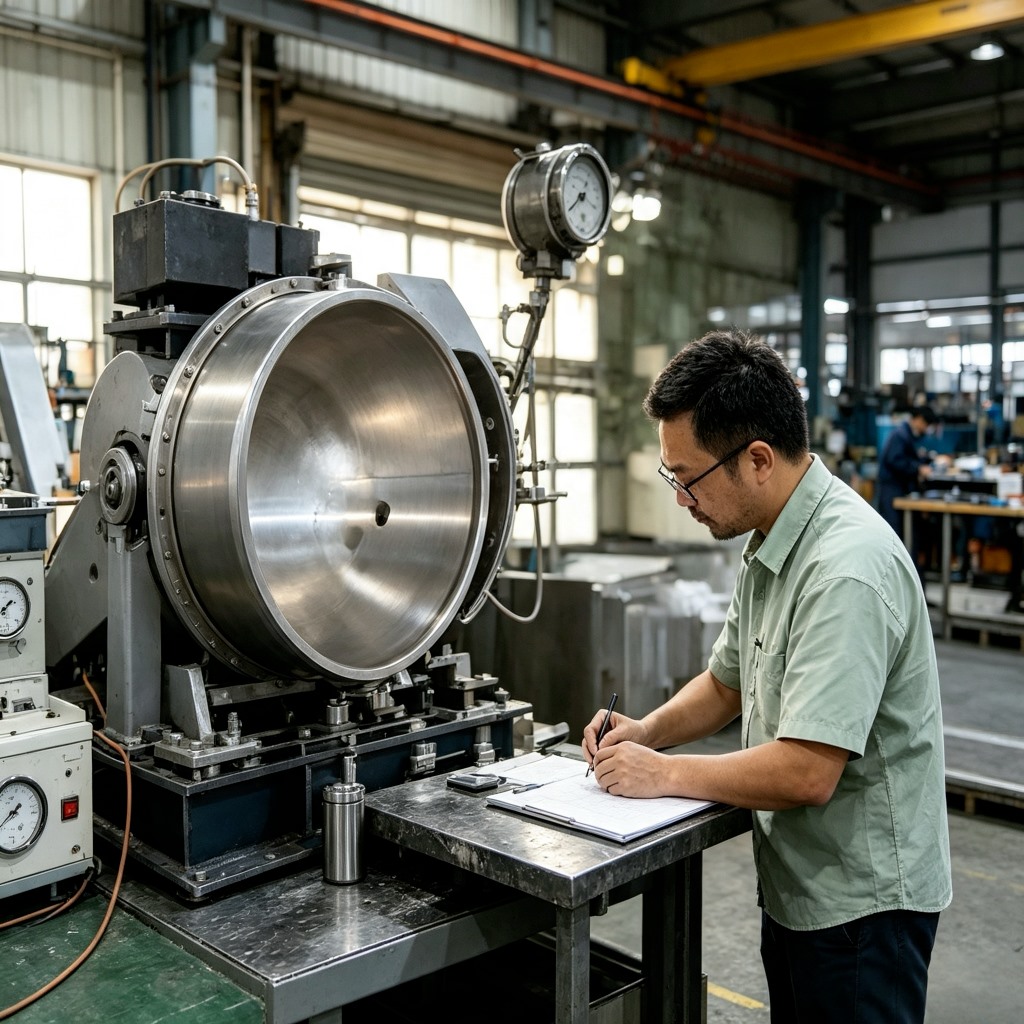

Assembly & Alignment
Machine components assembled and checked.
05 · RUN-IN TEST
No-Load Test
Initial operation check before material trial.
06 · MATERIAL TRIAL
Load Test
Functional mixing test for the configuration.
07 · BUYER REVIEW
Video Inspection
Recorded inspection for pre-dispatch review.
08 · EXPORT PROTECTION
Fumigation Packing
Protected packing prepared for shipment.
TRANSPARENT PRICING
Transparent pricing. No hidden costs. No surprises.
Use these indicative ranges as a starting point, then request a configuration-specific quote for capacity, material and delivery scope.
Clear scope before you order.
Confirm equipment configuration, packing and delivery terms in one documented quotation. FOB, CIF and DDP scopes can be discussed for your project.
| Model | Capacity | Contact material | Indicative FOB (USD) |
|---|---|---|---|
| Ribbon Mixer | 100–20,000L | SS304 / SS316L | $2,200–11,000 |
| Double Paddle Mixer | 100–12,000L | SS304 / SS316L | $3,500–9,800 |
| Plough Shear Mixer | 100–10,000L | SS304 / SS316L | $4,200–12,500 |
| Rotary Drum Mixer | 100–5,000L | SS304 / SS316L | $2,800–7,500 |
| V-Shape Mixer | 50–5,000L | SS304 / SS316L | $1,800–6,800 |
| Double Cone Mixer | 100–5,000L | SS304 / SS316L | $2,000–7,200 |
Price range note: final price changes with capacity, stainless-steel grade, controls, optional equipment and delivery terms.
Every quoted order can confirm these delivery essentials.
01Export-ready packing02Manual & setup video03Pre-shipment video04Material traceability05Warranty & support06Delivery-term confirmation
BUYER SUPPORT CENTER
Answers before you commit.
Start with the information that helps us recommend the appropriate equipment path.
How do I choose the correct mixer?
Share material behavior, batch size, bulk density, target output and cleaning needs. We can then recommend a suitable equipment path.
Can you supply a complete production line?
Yes. Feeding, mixing, conveying and packing stages can be considered together as one coordinated flow.
Which product-contact materials are available?
SS304 and SS316L options are available. The correct selection depends on your material and application.
How can I review equipment before dispatch?
The quality section shows the documented process from material inspection through video review and export packing.
Are you a factory?

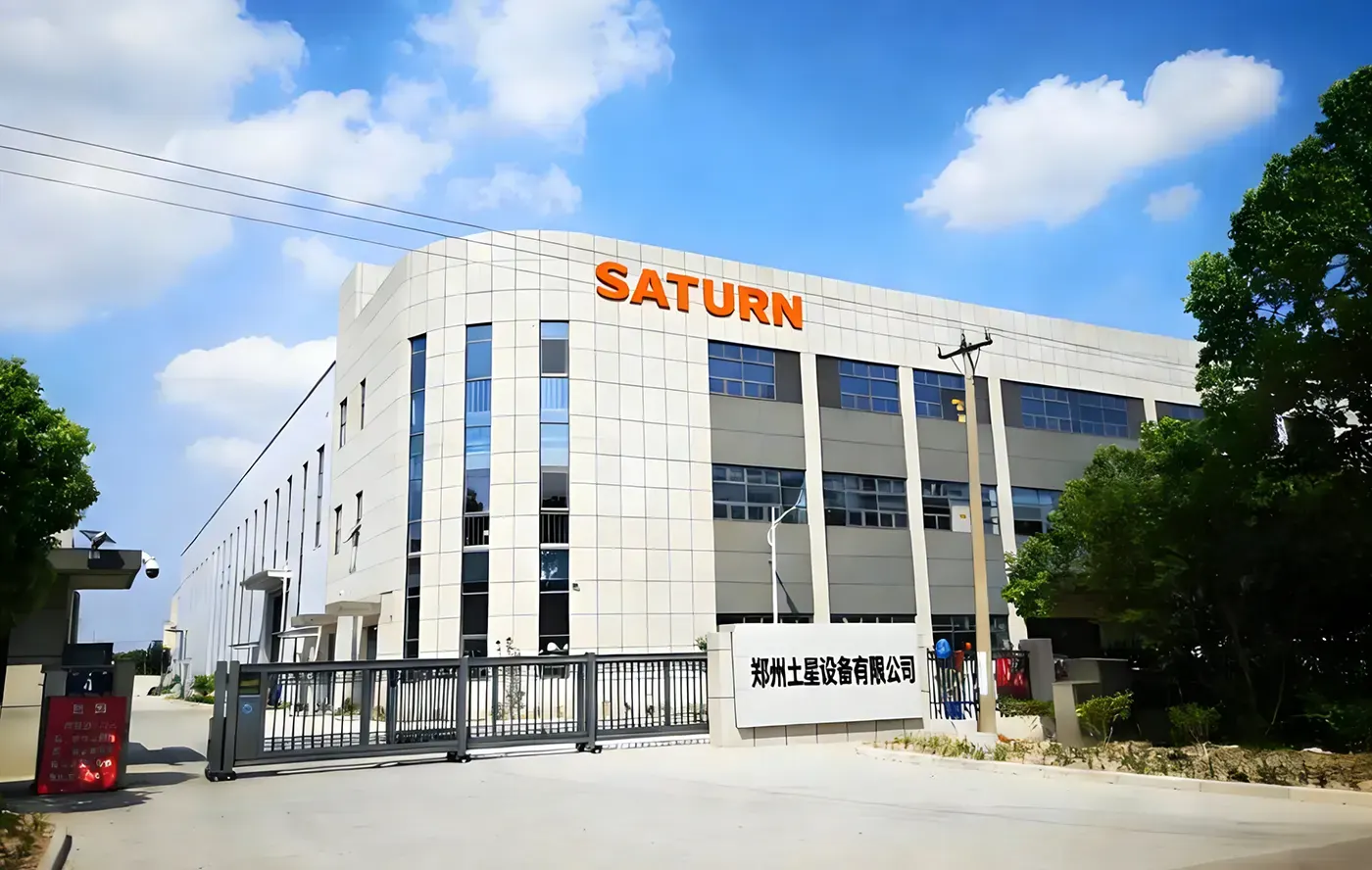

Saturn Machinery is a direct manufacturer in Zhengzhou, China. You can request factory information or a video discussion.
Where can I request a recommendation?
Use the form below, WhatsApp or the contact page. Include your material and target capacity for a useful response.
REQUEST A PROJECT REVIEW
Ready to get your custom ribbon blender quote?
Share material, capacity and required options for a project-matched equipment recommendation.
- Material and capacity review
- Guidance on equipment type and options
- Mixing, conveying and packing layouts
- Direct WhatsApp project communication
