Features
- Batch working volume：50 L -2000 L
- Raw material: 316 L / 304 stainless steel
- Customizable; can be equipped with a liquid spraying device, heating jacket, or vacuum system.
- No contamination to the material
V-SHAPE MIXER
V-Shape Mixer — Lab & Production Dry Powder Blender
$800–$10,000FOB Factory Price
- 5L to 3,000L · V Series · Lab & production
- SS304/316L · V-shaped tumbling vessel
- CV ≤ 5% uniformity · Transparent guard (lab)
- CE + ISO 9001 · Pre-shipment video test
OVERVIEW
V-Shape Tumbling Blender
The V-shape mixer consists of two cylindrical vessels joined at a 75-90° angle to form a "V". As the V-shaped vessel rotates, material continuously splits and recombines at the apex, creating an efficient asymmetric mixing action. This design achieves excellent uniformity (CV ≤ 5%) without shear force, preserving particle integrity. The V-shape mixer is available from 5L lab-scale models (ideal for R&D and formulation development) to 3,000L production units. Lab models feature a transparent polycarbonate safety guard and quick-release clamps for easy vessel removal and cleaning between batches.
TECHNICAL SPECIFICATIONS
V-Shape Mixer — V Series
| Parameter | V-5 | V-20 | V-50 | V-200 | V-500 | V-1000 | V-3000 |
|---|---|---|---|---|---|---|---|
| Total Volume (L) | 5 | 20 | 50 | 200 | 500 | 1000 | 3000 |
| Loading Ratio | 30-50% | 30-50% | 30-50% | 30-50% | 30-50% | 30-50% | 30-50% |
| Motor Power (kW) | 0.25 | 0.37 | 0.55 | 0.75 | 1.5 | 2.2 | 5.5 |
| Speed (RPM) | 10-30 | 10-28 | 10-25 | 8-22 | 8-20 | 6-18 | 5-15 |
* Also: V-10, V-30, V-100, V-300, V-800, V-1500, V-2000. Full model range.
Ready to Order?
$800–$10,000FOB Zhengzhou
- Pre-shipment video test
- Installation manual in English
- 12-month warranty
- Lifetime WhatsApp support
KEY FEATURES
Design Features
Asymmetric V-Shape
The V geometry splits and recombines material at the apex for thorough mixing.
CV ≤ 5% Uniformity
Excellent mixing uniformity validated by sampling and analysis.
Transparent Safety Guard
Lab models (5L–50L) include clear polycarbonate guard for visual observation.
Quick-Release Clamps
Easy vessel removal for cleaning and changeover between batches.
LAB VS PRODUCTION
Scale Comparison
Lab Models (5L–50L)
- ✓ 5L, 10L, 20L, 30L, 50L
- ✓ Transparent safety guard
- ✓ Quick-release clamps
- ✓ Small footprint, benchtop
- ✓ Ideal for R&D, QC lab
Production Models (100L–3000L)
- ✓ 100L to 3000L
- ✓ Heavy-duty frame and drive
- ✓ Pneumatic discharge assist
- ✓ Integrated control panel
- ✓ For pilot and production batches
APPLICATIONS
Industry Applications
Pharma R&D
Formulation development, API-excipient blending, lab-scale batches.
Food Lab
Spice blends, powder premix development, nutritional powder R&D.
Chemical Lab
Additive blending, catalyst preparation, small-batch production.
University Research
Teaching labs, research projects, powder technology studies.
WHY SATURN
Lab to Production Expertise
Full Scale Range
From 5L lab to 3,000L production — one partner, every scale.
Video Test
See your mixer running before payment.
Real Factory
8,000 m² plant. Direct pricing.
6 Reasons to Choose Saturn Machinery
Ready to Get Your V-Shape Mixer Price?
Free quote in 24 hours · Video test before payment · No obligation
Get a Free Quote →Frequently Asked Questions
Get a Quote for Your V-Shape Mixer
- ✅ Custom quote in 24 hours
- ✅ Lab or production configuration
📋 Request Quote
How a V-Shape Mixer Works
The V-shaped vessel rotates, splitting the powder into two arms then re-combining at the apex. This repeated split-and-merge action ensures 98-99% uniformity without shear damage.
Powder loaded into V arms > Rotation splits material > Recombines at apex > Split-and-merge cycles > Uniform blend
Customization Options
Materials
SS304, SS316L mirror polish, or titanium
GMP Package
IQ/OQ/PQ documentation, sanitary welds, CIP
Variable Speed
Frequency inverter for adjustable speed
Vacuum Feed
Dust-free vacuum loading
Explosion-Proof
ATEX motors for combustible powder
SOURCE EQUIPMENT DETAILS
Vessel, Inlet, Seal & Control Details
The source product content adds component views for the V-shaped double-tube vessel, feed inlet, mixing section, sealing point, discharge and control cabinet.
Product engineering details
V-Shape Mixer Engineering Details
Review the V-shell blending geometry, working capacity, material-contact options and typical use cases for low-shear powder mixing.
Introduction
The V-type mixer ensures rapid, uniform blending of free-flowing powders and granules through its unique asymmetric design and gentle tumbling action.
Ideal for pharmaceuticals, food additives, and chemicals, it delivers high homogeneity with minimal heat or degradation.
Custom options like spray nozzles or intensifier bars are available for specialized needs.
- Batch working volume
- 50 L -2000 L
- Raw material
- 316 L / 304 stainless steel
- Mixing time
- 5-7 mins
Applications
- Pharmaceutical: Blending active powders, excipients, and intermediates.
- Food: Mixing seasonings, additives, nutritional powders, and milk powder.
- Chemical: Blending dyes, pigments, plastic master batch, and fine chemicals
- New Materials: Mixing battery cathode/anode powders, ceramic powders, and metal powders.
Specifications
| Specifications | ||||||
|---|---|---|---|---|---|---|
| Design Volume (L) | Capacity (L) | Power (kw) | Speed (rpm) | Inlet Size (mm) | Overall Dimensions (mm) | Weight （kg） |
| 100 | 20-50 | 1.5 | 15 | 220*110 | 1570*500*1200 | 200 |
| 200 | 40-100 | 1.5 | 15 | 250*150 | 1750*700*1700 | 300 |
| 300 | 60-150 | 2.2 | 15 | 250*150 | 1845*850*2010 | 580 |
| 400 | 80-200 | 2.2 | 15 | 270*150 | 2350*890*1775 | 600 |
| 500 | 100-250 | 2.2 | 15 | 270*150 | 2500*900*2280 | 650 |
| 1000 | 200-500 | 3 | 12 | 270*150 | 2950*1020*2620 | 900 |
| 1500 | 300-750 | 4 | 12 | 350*150 | 3000*1120*2900 | 980 |
| 2000 | 400-1000 | 5.5 | 12 | 350*200 | 3830*1250*3360 | 1510 |
Details

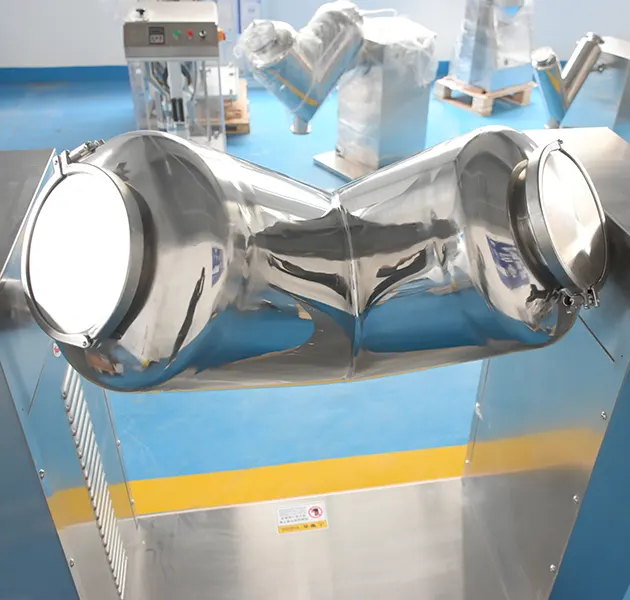

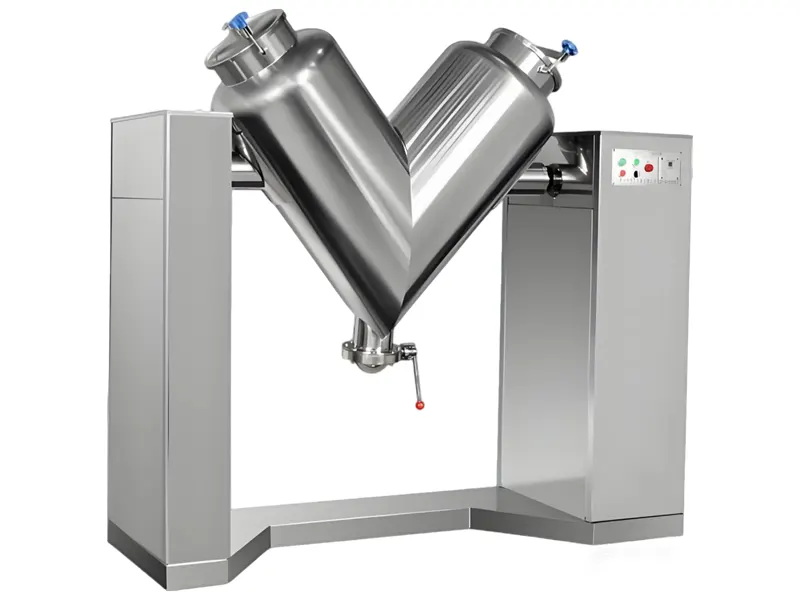

V-shaped double tube structure

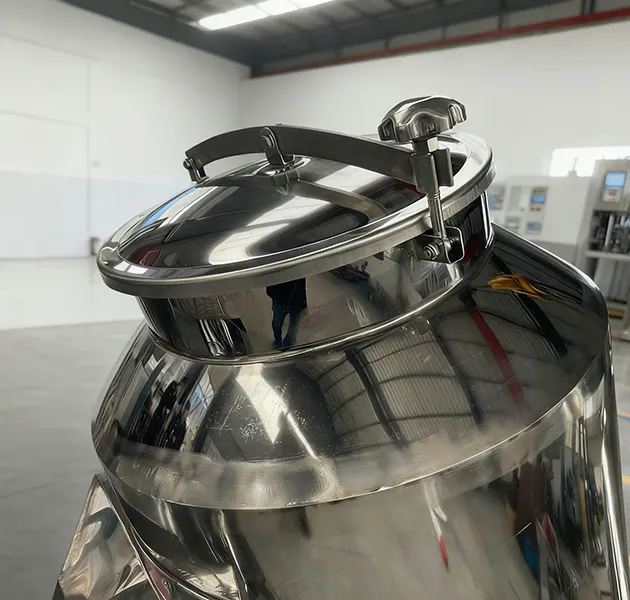

Feed inlet

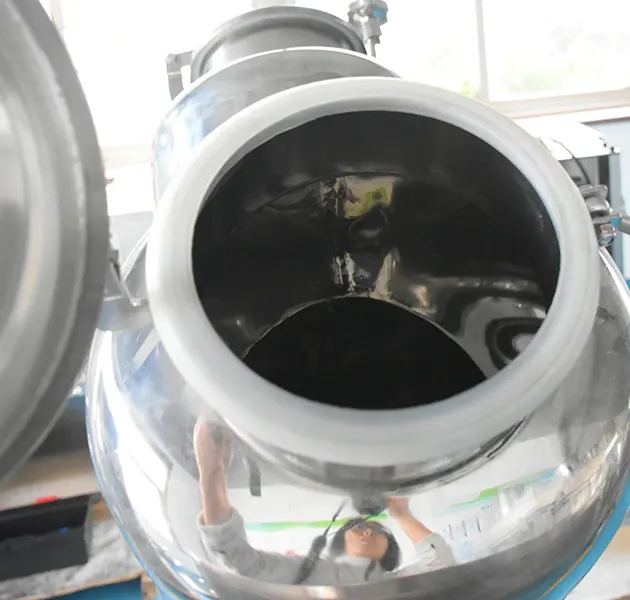

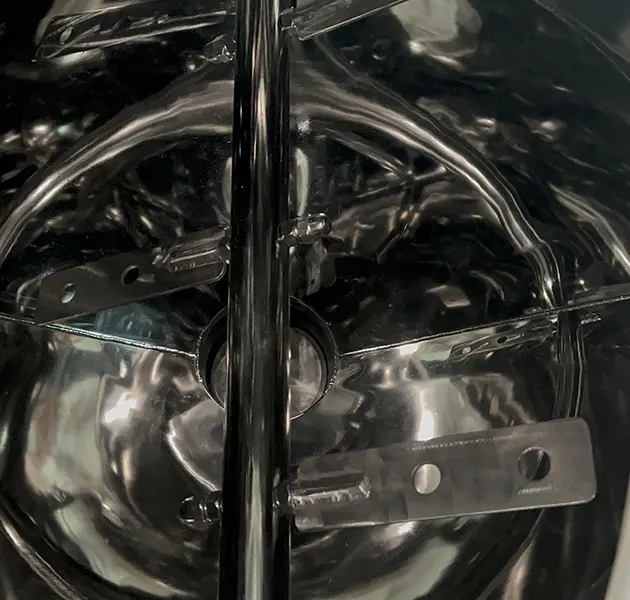

Mixing unit
Sealing port

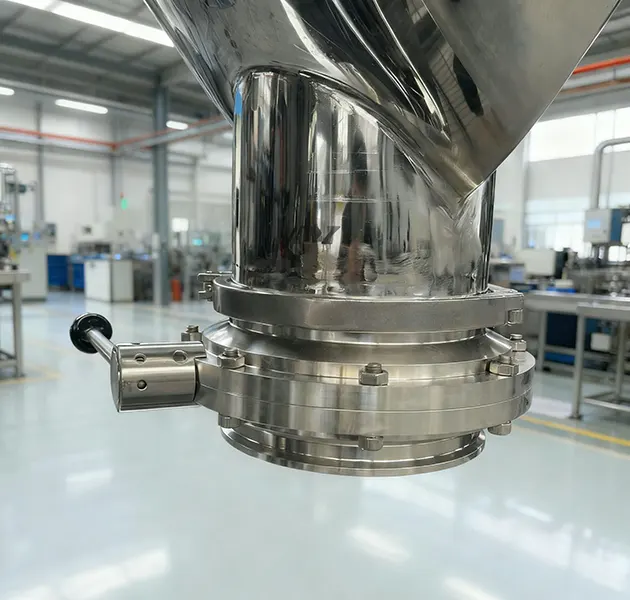

Discharge port

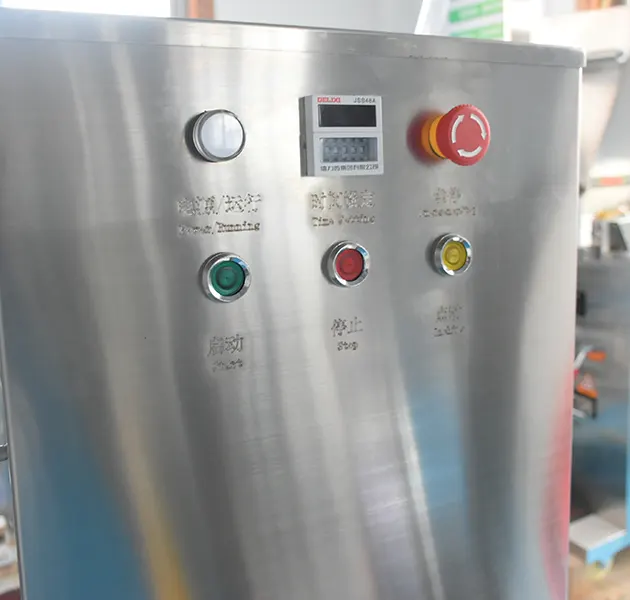

Control cabinet
