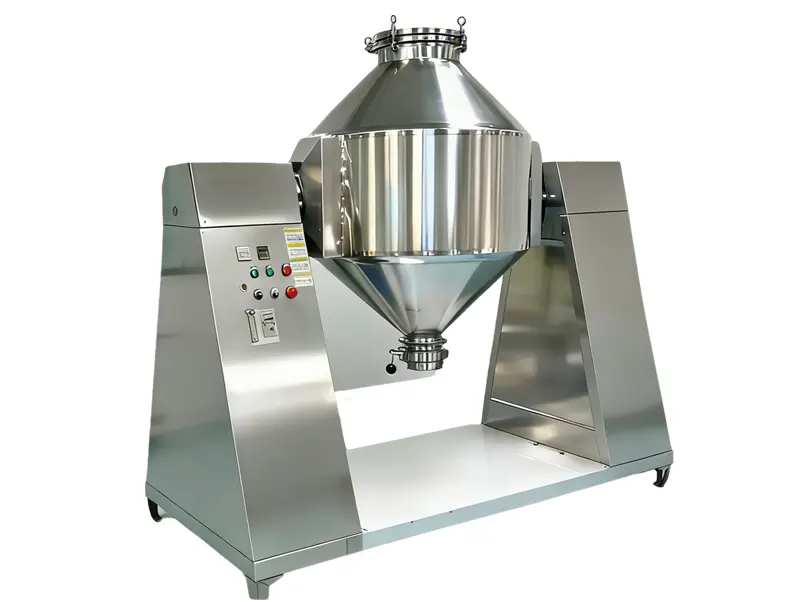

DOUBLE CONE MIXER
$2,000–$18,000FOB Factory Price
OVERVIEW
The double cone mixer consists of two conical sections joined at their bases, rotating 360° around a central axis. As the vessel rotates, material cascades gently under gravity, creating a thorough yet gentle blending action. The double cone geometry eliminates dead zones — every particle participates in the mixing process. This mixer is the preferred choice for pharmaceutical and food-grade applications where GMP compliance, complete discharge, and easy cleaning are essential. The mirror-polished SS316L interior (Ra ≤ 0.4μm) meets the strictest hygiene requirements.
TECHNICAL SPECIFICATIONS
| Parameter | DCM-50 | DCM-200 | DCM-500 | DCM-1000 | DCM-2000 | DCM-5000 |
|---|---|---|---|---|---|---|
| Total Volume (L) | 50 | 200 | 500 | 1000 | 2000 | 5000 |
| Loading Ratio | 30-50% | 30-50% | 30-50% | 30-50% | 30-50% | 30-50% |
| Motor Power (kW) | 0.75 | 1.5 | 2.2 | 4 | 5.5 | 11 |
| Speed (RPM) | 5-25 | 5-20 | 5-18 | 5-15 | 4-12 | 3-10 |
* Also: DCM-100, DCM-300, DCM-800, DCM-1500, DCM-3000. Full model range available.
KEY FEATURES
Complete vessel rotation ensures every particle participates in mixing — zero dead zones.
SS316L contact parts, Ra ≤ 0.4μm surface finish. Exceeds GMP requirements.
Cone geometry and smooth interior ensure 99.9%+ discharge — minimal product retention.
CIP/WIP capable. Sanitary flanges. Full IQ/OQ/PQ documentation package available.
APPLICATIONS
API + excipient blending, granule mixing, pre-compression blending.
Milk powder, protein powder, infant formula, nutritional supplements.
Talc, pigment blending, face powder base, bath salt mixing.
Catalysts, zeolites, fine chemical powder blending.
OPTIONS
Combined mixing + vacuum drying in one vessel. Heating jacket included.
High-speed internal bar for deagglomeration of lumpy powders.
Variable frequency drive for adjustable rotation speed.
Pneumatic or vacuum loading. Automatic positioning for discharge.
WHY SATURN
Dedicated clean assembly area for pharma-grade equipment.
Full validation documentation package available.
See your double cone mixer running before payment.
Free quote in 24 hours · Video test before payment · No obligation
Get a Free Quote →The double-cone vessel rotates around its axis, causing powder to tumble and re-combine continuously. The asymmetric cone geometry creates a figure-eight flow pattern with no dead zones, achieving 99.5% homogeneity in 4-10 minutes.
SOURCE EQUIPMENT DETAILS

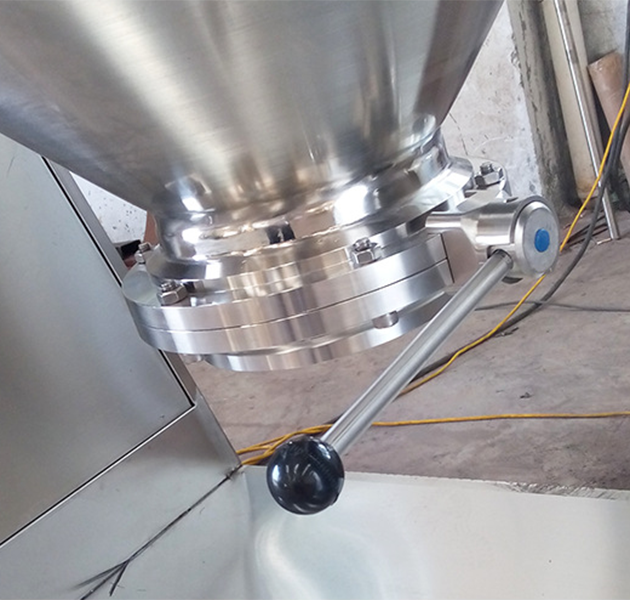

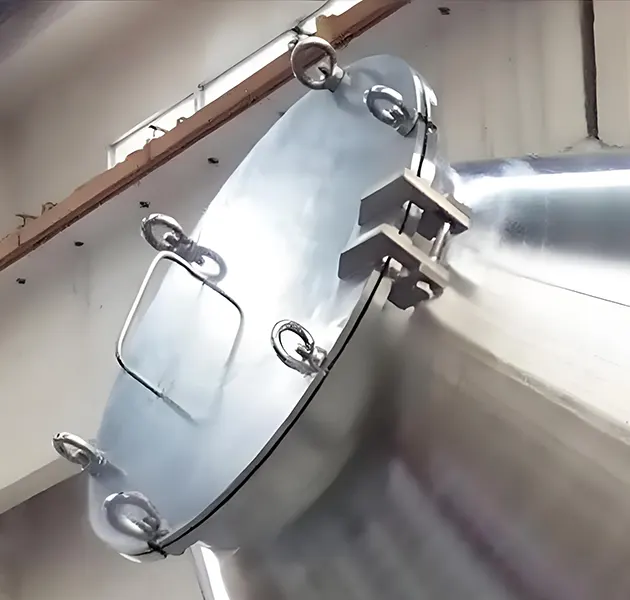

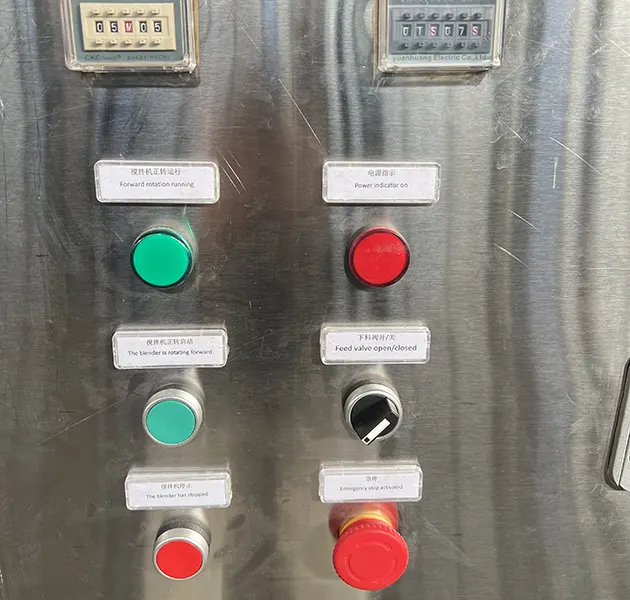

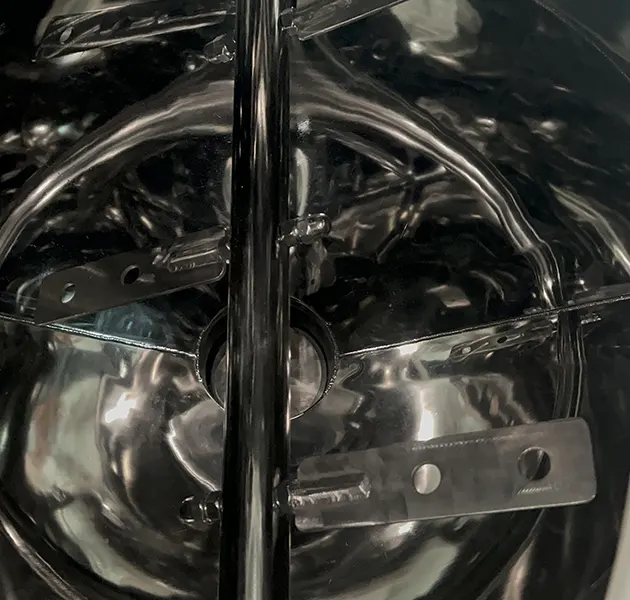

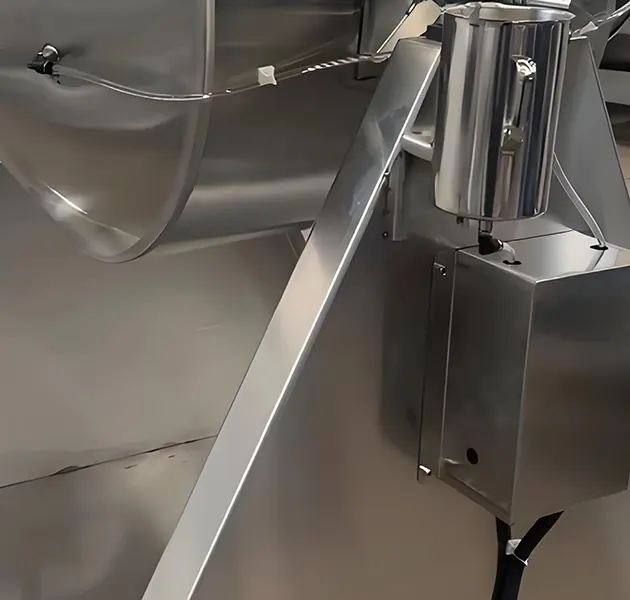

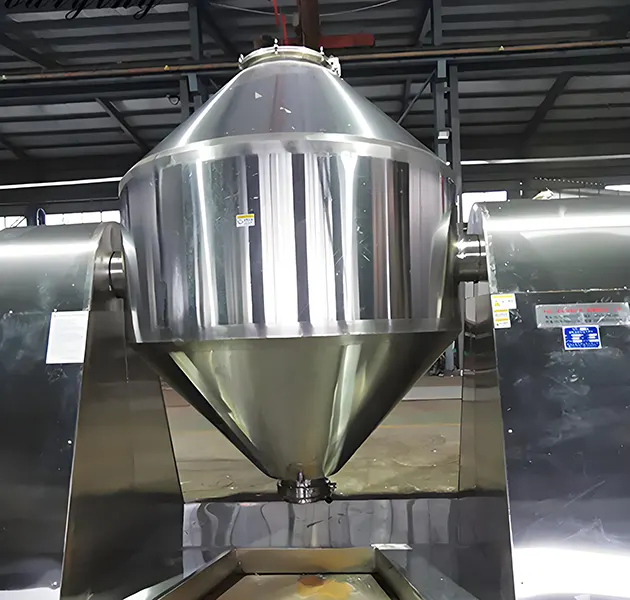

Source product material documents the cone vessel, feed inlet, mixing zone, discharge, electrical control and optional spray system alongside the existing GMP features.
Product engineering details
Check the gentle tumbling principle, model range, hygiene-focused features and loading recommendations for free-flowing powders and granules.
The double-cone mixer provides gentle, homogeneous blending through its unique tumbling action.
Its symmetrical design enables efficient three-dimensional mixing of dry powders and granules without internal blades, ensuring minimal product degradation.
Easy to clean and discharge, it is ideal for pharmaceuticals, food, and high-value materials.
| Specifications | |||||
|---|---|---|---|---|---|
| Design Volume (L) | Capacity (L) | Power (kw) | Speed (rpm) | Overall Dimensions (mm) | Weight （kg） |
| 100 | 30-50 | 0.75 | 15 | 1500*600*1500 | 240 |
| 200 | 50-100 | 1.1 | 15 | 1750*700*1700 | 300 |
| 500 | 150-250 | 2.2 | 12 | 4200*1650*1560 | 650 |
| 1000 | 300-500 | 3 | 12 | 4400*1850*1850 | 900 |
| 1500 | 300-800 | 4 | 12 | 4500*1850*2000 | 980 |
| 2000 | 500-1000 | 5.5 | 12 | 5400*2050*2250 | 1600 |
| 3000 | 500-1500 | 7.5 | 9 | 6550*2350*2700 | 1800 |
| 4000 | 1000-2000 | 11 | 9 | 6800*2500*3000 | 2200 |
