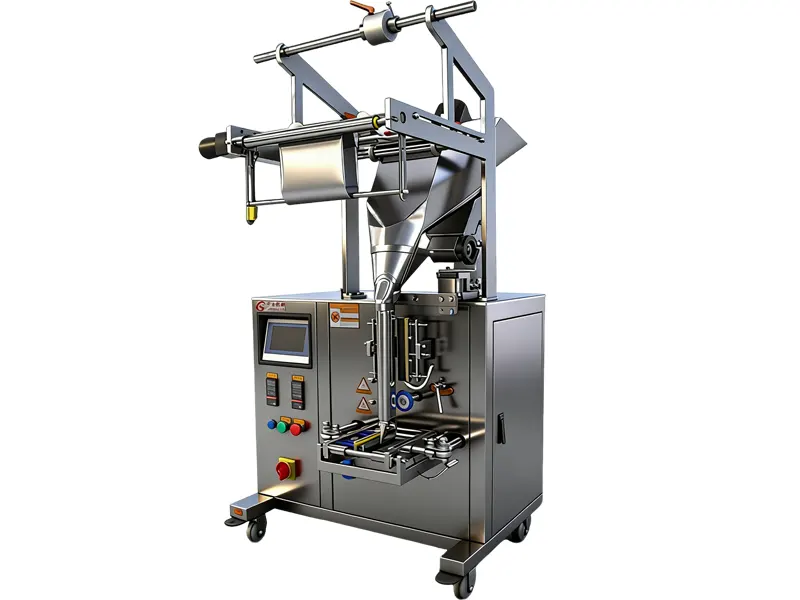

POWDER PACKING MACHINE
$3,500–$28,000FOB Factory Price
OVERVIEW
The powder packing machine uses a precision auger (screw) filling system driven by a servo motor for exact volumetric dosing. The machine automatically forms bags from roll film, fills them with powder, and seals them — all in one continuous operation. A weighing feedback system continuously adjusts the auger rotation to maintain ±0.2–0.5% accuracy. The touchscreen HMI allows operators to set fill weight, speed, and temperature parameters. Quick-change forming tubes and augers enable fast product changeover. Available filling systems include auger (standard), volumetric cup, net weigh, and multi-head weigher for high-speed applications.
TECHNICAL SPECIFICATIONS
| Parameter | PPM-100 | PPM-500 | PPM-1000 | PPM-5000 | PPM-25000 |
|---|---|---|---|---|---|
| Fill Range (g) | 1-100 | 50-500 | 100-1000 | 500-5000 | 1000-25000 |
| Accuracy | ±0.2-0.5% | ±0.2-0.5% | ±0.2-0.5% | ±0.2-0.5% | ±0.2-0.5% |
| Speed (bags/min) | 30-80 | 25-60 | 20-50 | 10-40 | 5-20 |
| Power (kW) | 2.5 | 3.5 | 4.5 | 6 | 10 |
* Also: PPM-200, PPM-2000. SS304/316L contact parts. Multi-head weigher option available.
FILLING SYSTEMS
Most common, excellent for powders. Servo-driven precision. Wide range.
Fixed-volume cups. Fast, simple. For free-flowing granules and powders.
Gravimetric filling. Highest accuracy. For high-value products.
10-14 head combination weigher. Fastest option (60-120 bags/min).
FEATURES
Servo-driven auger with continuous weighing feedback for precise dosing.
Intuitive PLC control. Store 50+ product recipes. Easy parameter adjustment.
Quick-release forming tube and auger. Change products in under 10 minutes.
Integrated dust hood and extraction port for clean, safe operation.
PACKAGE TYPES
Standard 3-side seal pillow pouch. Most common format.
Side or bottom gusset for stand-up capability. Better shelf presence.
Doypack with zipper. Premium packaging format.
All sides sealed. Extra strong. For heavy or sharp products.
MATERIALS
Our powder packing machines handle a wide range of material flow characteristics.
Granulated sugar, salt, plastic pellets, instant coffee.
Flour, milk powder, protein powder, ground spices.
Cocoa powder, icing sugar, titanium dioxide, fine pigments.
Carbon black, fumed silica, talc. Dust extraction critical.
Free quote in 24 hours · Video test before payment · No obligation
Get a Free Quote →A servo-driven auger screw precisely measures powder volume, while a load cell confirms weight. The bulk-and-dribble filling method ensures 0.1-0.2% accuracy, then the bag is sealed automatically.
SOURCE EQUIPMENT DETAILS

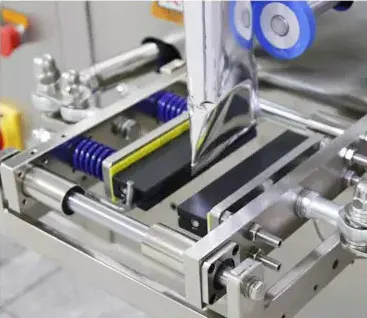

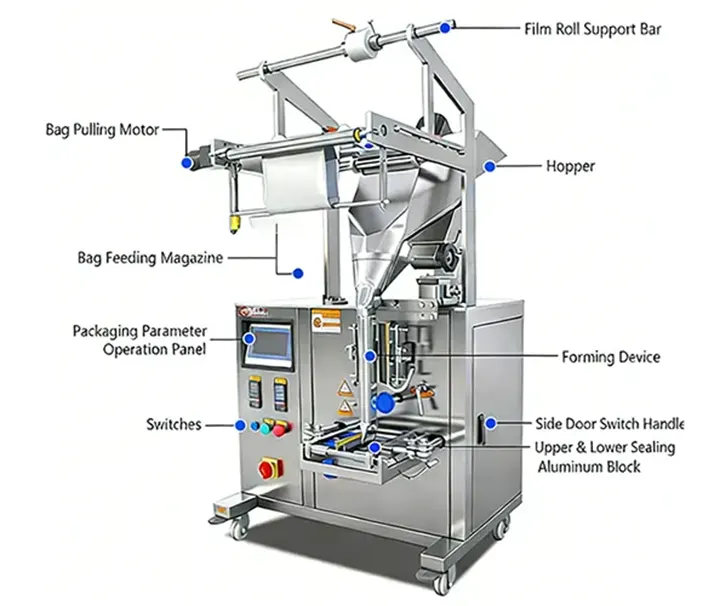

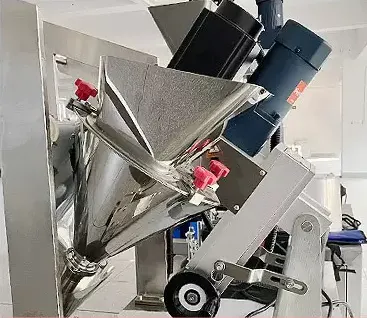

Source product content adds views of the feed hopper, PLC panel, industrial drive, pneumatic sealing assembly and associated packaging-machine modules.
Product engineering details
Explore filling accuracy, bag-weight range, dosing components and automation options for powder packaging lines.
This fully automatic powder packaging machine is designed for filling and packaging various powder products (such as coffee powder, flavoring powder, laundry detergent, dye powder, etc.), with a single packaging weight of 10-3000g.
The machine has a packaging speed of 5-50 bags per minute and a filling range of 5-6000ml. It automatically completes bag making, coding, metering, filling, sealing, and bag cutting.
Suitable for the food, chemical, and pharmaceutical industries.
| Technical Parameters | |||
|---|---|---|---|
| Type | S-420 | S-520 | S-720 |
| Bag length | 80-300 mm | 80-400 mm | 100-400 mm |
| Bag width | 50-200 mm | 80-250 mm | 180-350 mm |
| Max width of roll film | 420 mm | 520 mm | 720 mm |
| Packing speed | 5-30 bags/min | 5-50 bags/min | 5-50 bags/min |
| Measuring range | 5-1000 ml | 3000 ml | 6000ml |
| Air consumption | 0.65 mpa | 0.65 mpa | 0.65 Mpa |
| Gas consumption | 0.3 m³/min | 0.4 m³/min | 0.4 m³/min |
| Power voltage | 220 V | 220 V/50 HZ | 220 V/50 HZ |
| Power | 2.2 KW | 3 KW | 5 KW |
| Dimension | 1320*950*1360 mm | 1150*1795*11650 mm | 1780*1350*1950mm |
| Weight | 540 kg | 600 kg | 700kg |
